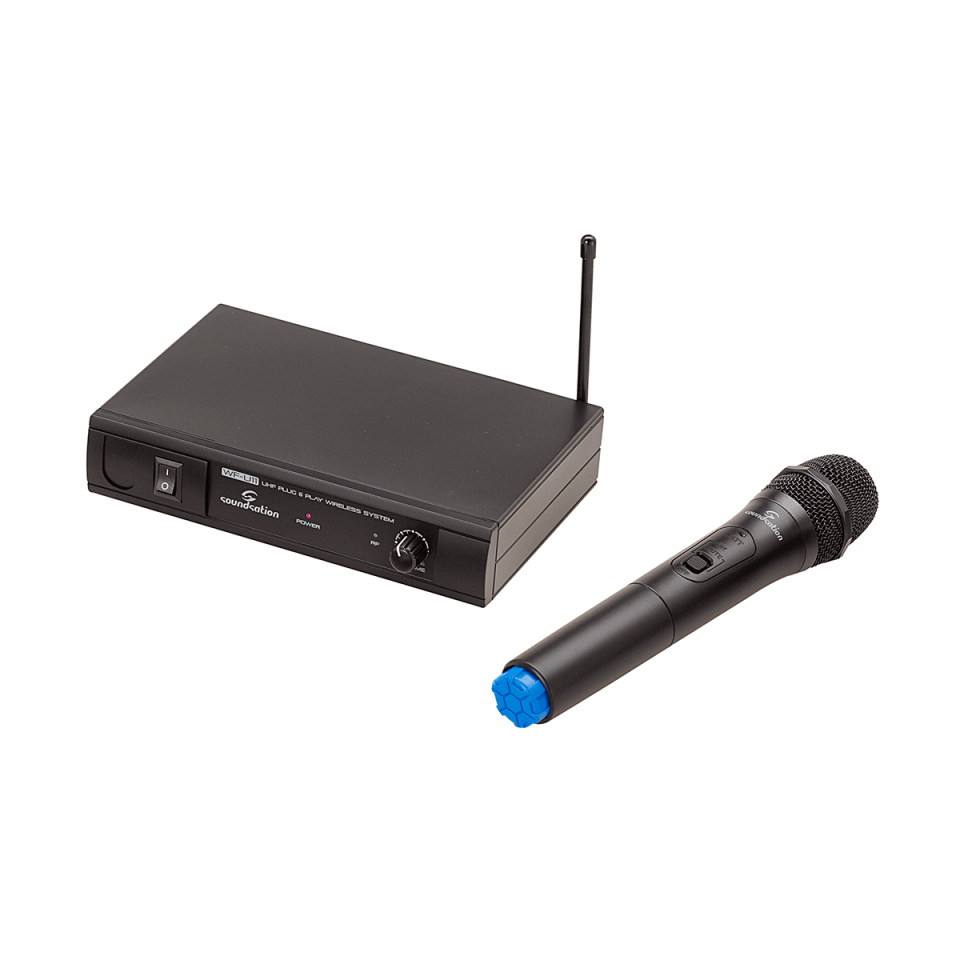

WF-U11HA UHF Plug & Play Hand-Held Wireless Microphone System (Freq. 863.05 MHz)

Download product sheet
SOUNDSATION WF-11 is the answer to all those who need a reliable, high-quality sound, and easy to use wireless microphone system. Ideal in educational, Portable Sound, Public Address, and DJ contexts, the WF-11 impresses with its brilliant and warm sound, thanks to the quality of components and the capsule designed for all application.
SOUNDSATION WF-11 is the answer to all those who need a reliable, high-quality sound, and easy to use wireless microphone system. Ideal in educational, Portable Sound, Public Address, and DJ contexts, the WF-11 impresses with its brilliant and warm sound, thanks to the quality of components and the capsule designed for all application.

Product downloads

Product details

Key features

  • UHF Transmission with SMD Technology
  • 4 available Frequencies in free-license ISM Europe Band
  • Simple user Interface for plug and play setup
  • 30m ideal distance (without obstacles)
  • Handheld microphone with high-quality dynamic cardioid capsule

Specifications

  • Carrier Frequency
    UHF 863-865MHz
  • Available Frequencies
    863.05 MHz, 864.15 MHz, 863.55 MHz, 865.00 MHz (WF-U11HA Freq. is 863.05 MHz)
  • Frequency Stabilization
    Automatic calibration
  • Dynamic Range
    > 90dB
  • Total Harmonic Distortion
    < 0.5%
  • Frequency Response
    40 – 18500 Hz / ±3dB
  • Packing Dimensions (WxHxD)
    436 x 104 x 324 mm
  • Packing Gross Weight
    2.0 kg
  • Power Supply
    DC12V, 400mA
  • Consumption
    < 4W
  • Signal/Noise Ratio
    > 95dB
  • Border Upon Channel Rejection
    > 80dB
  • Receiving Sensitivity
    10dBuV
  • De-Emphasis
    75uS
  • Audio Output Level
    Balanced 400mV; Unbalanced 400mV
  • Dimensions (WxHxD)
    211 x 43 x 115 mm (antennas not incl.)
  • Antenna
    120 mm (not bent)
  • Net Weight
    0.295 kg
  • Transmitter Power
    10mW
  • Modulation Type
    FM
  • Deviation
    37KHz
  • Spurious Emission
    > 30dB
  • Battery Voltage
    3V (2x1.5V AA-Type Batteries)
  • Continuous Using
    5 hours
  • Hand-held Mic. Dimensions (W/DxH)
    Ø33 (min) - Ø48 (max) x 240 mm
  • Hand-held Mic. Net Weight
    0.218 kg (batteries included)
  • More Specifications Less Specifications
