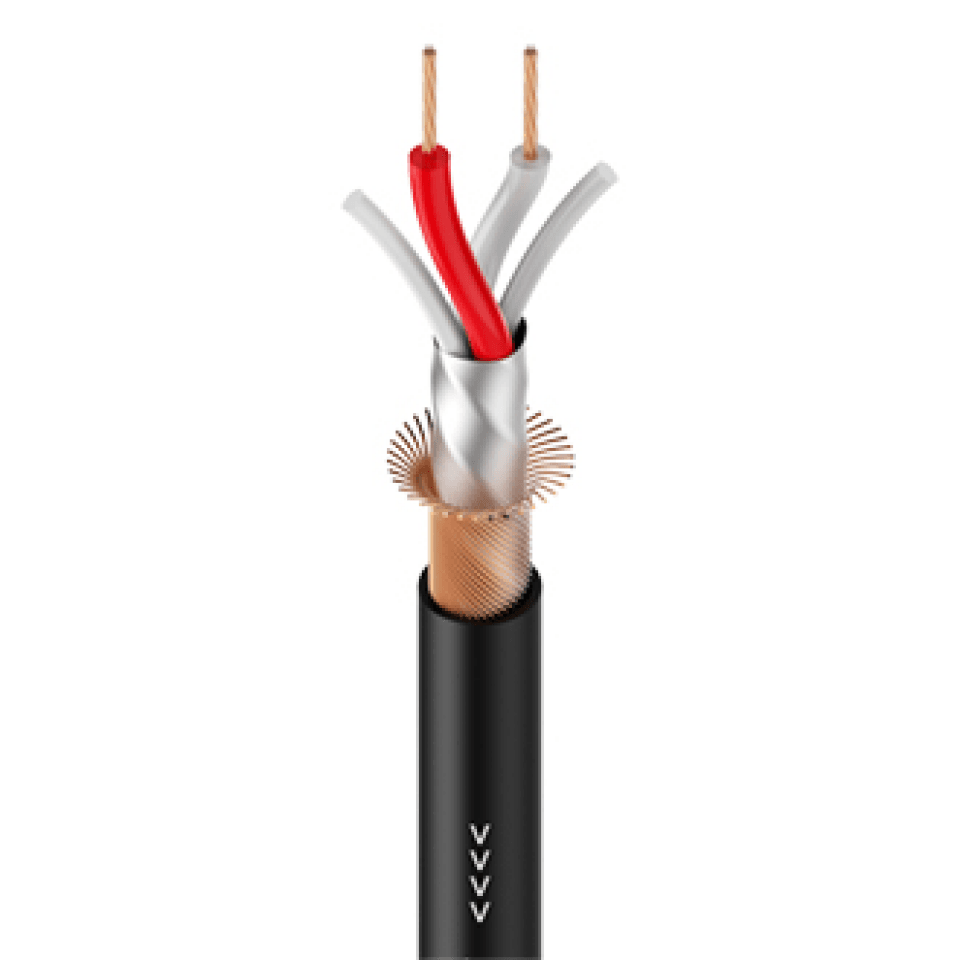

DCR2034-100 Bulk AES/EBU - DMX cable (100 mt)

Download product sheet
Bulk AES/EBU - DMX cable (100 mt)featuring high conductivity. OFC (Oxygen Free Copper)technology, 95% shielding, 2x0,34mm2 section, 6,5mm diameter.
Bulk AES/EBU - DMX cable (100 mt)featuring high conductivity. OFC (Oxygen Free Copper)technology, 95% shielding, 2x0,34mm2 section, 6,5mm diameter.

Product details

Key features

  • AES/EBU - DMX cable
  • OFC construction (Oxygen Free Copper)
  • High conductivity
  • Mt: 100

Specifications

  • OFC construction (Oxygen Free Copper)
  • Shielding
    100% with spiral copper 80x0,10 mm + AL/PT foil + PE filter
  • Inner conductors
    2x0,34 mm2
  • Copper strand per conductors
    7x0,25 mm
  • Diameter
    6,5 mm
  • Jacket
    PVC
  • Temp. range
    -20(min)/70 (max)
  • AWG
    24
  • Capac. cond/cond per 1 m
    <65pF
  • Capac. cond/shield per 1 m
    115pF
  • Cond. resistance per 1 km
    53 Ohm
  • Shiedl resistance per 1 km
    17 Ohm
  • Insulation resist. per 1 km
    >10G Ohm
  • Surge impedence
    110 Ohm
  • More Specifications Less Specifications
