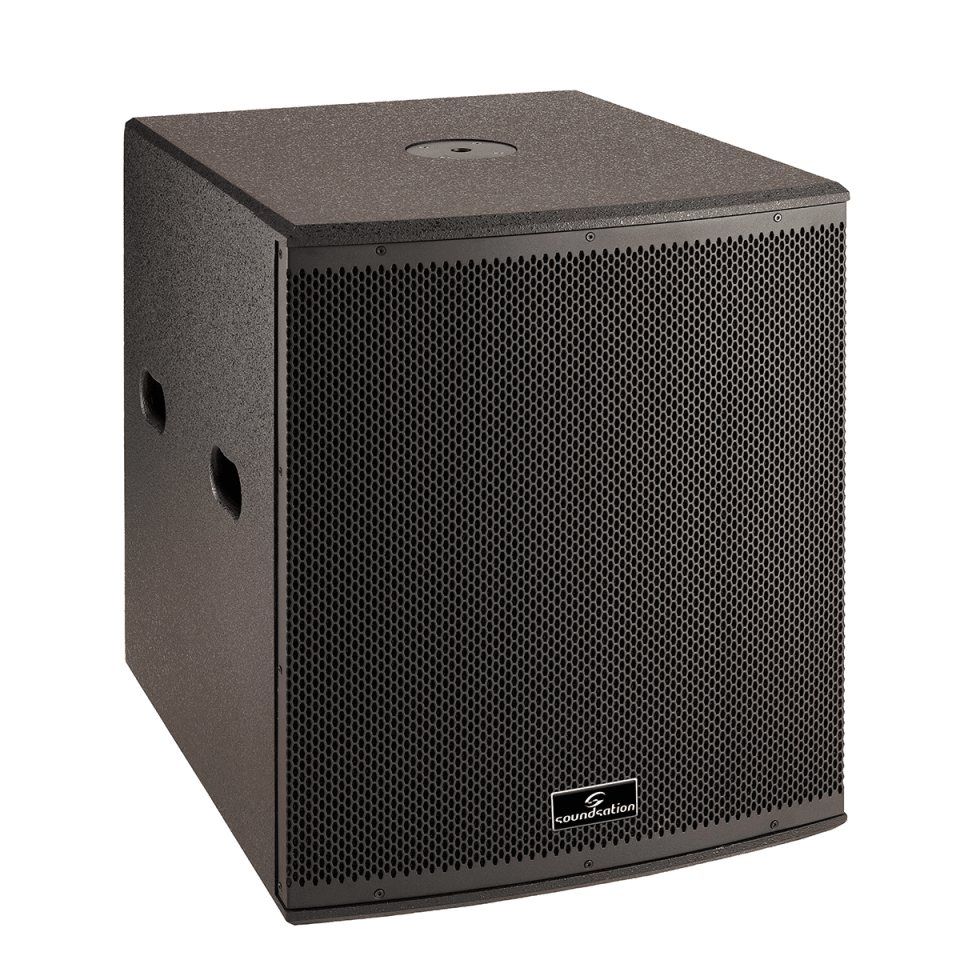

HYPER BASS 18P 18" Bass-Reflef Professional Passive Subwoofer

Download product sheet
HYPER BASS 18P is a passive subwoofer with bass-reflex, compact, lightweight and very easy to use. It is ideal for both fixed installations and live music events or PA in general. HYPER BASS 18P has a program power of 1600W (3200W peak) with a 18” professional custom woofer. This model has a sturdy, lightweight and elegant plywood housing with metal gr... Read more »
HYPER BASS 18P is a passive subwoofer with bass-reflex, compact, lightweight and very easy to use. It is ideal for both fixed installations and live music events or PA in general. HYPER BASS 18P has a program power of 1600W (3200W peak) with a 18” professional custom woofer. This model has a sturdy, lightweight and elegant plywood housing with metal grille and acoustic foam to protect the transducers inside and give an attractive appearance. It also has 4 recessed handles (2 on each side) and a standard M20 mounting hole to allow any type of installation with SUBEST100-BK or SUBST100-M20 poles. Collapse text

Product downloads

Product details

Key features

  • Sturdy housing in plywood with front bass-reflex
  • Anti-scratch powder coating
  • 18" csutom woofer with 4" voice coil
  • Power: 800W RMS - 8ohm (1600W Program / 3200W Peak)
  • Connection: Spekon Input and Output (+1 Positive, -1 Negative)
  • Recessed handles (2 per side)
  • Pole mounting with M20 thread
  • More Key features Less Key features

Specifications

  • Frequency Resp. (-10 dB)
    35Hz - 1KHz
  • Frequency Resp. (-3 dB)
    40Hz - 600Hz
  • Sensibility (1W @ 1m)
    98dB
  • MAX SPL
    130dB
  • RMS Power
    800W
  • Program/Peak Power
    1600/3200W
  • Impedance
    8 Ohm
  • LF Diameter
    18"
  • LF Voice Coil
    4"
  • Input Connectors
    1x2 Poles Speakon connector
  • Output Connectors
    1x2 Poles Speakon connector
  • Housing Material
    Plywood
  • Grille Material
    Steel
  • Thickness Grille
    1.5mm
  • Handles
    4 Recessed handles (2 on each side)
  • Pole Mount
    SUBEST100-BK or SUBST100-M20 (Optional)
  • Subwoofer Dimensions (WxHxD)
    540 x 670 x 630 mm
  • Packing Dimensions (WxHxD)
    630x 775 x 700 mm
  • Subwoofer Weight
    39,5 kg
  • Packing Weight
    45,0 kg
