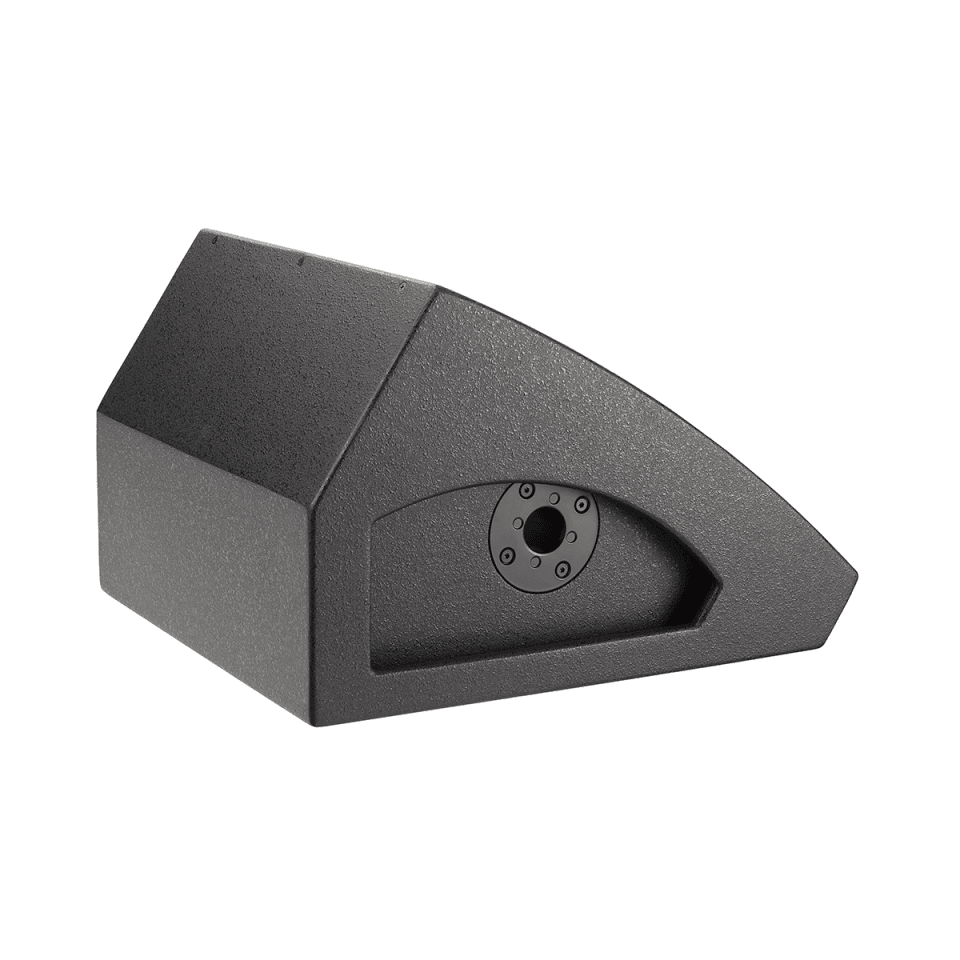

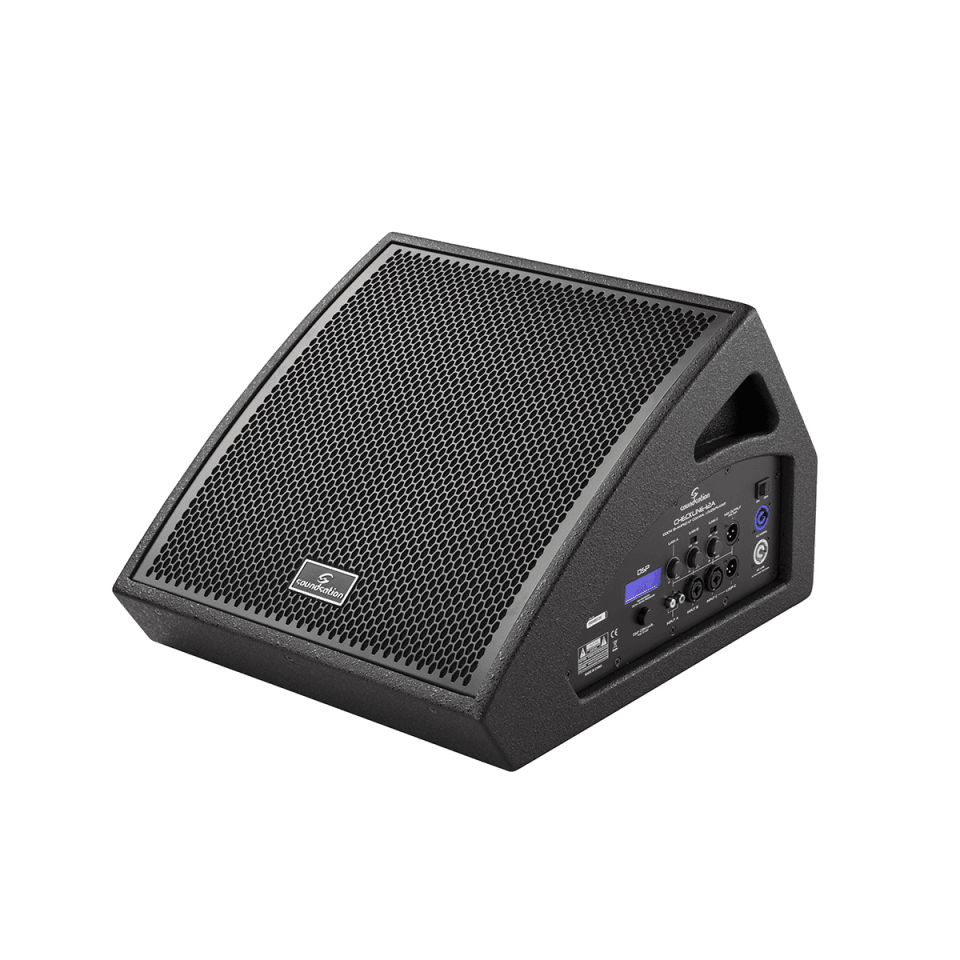

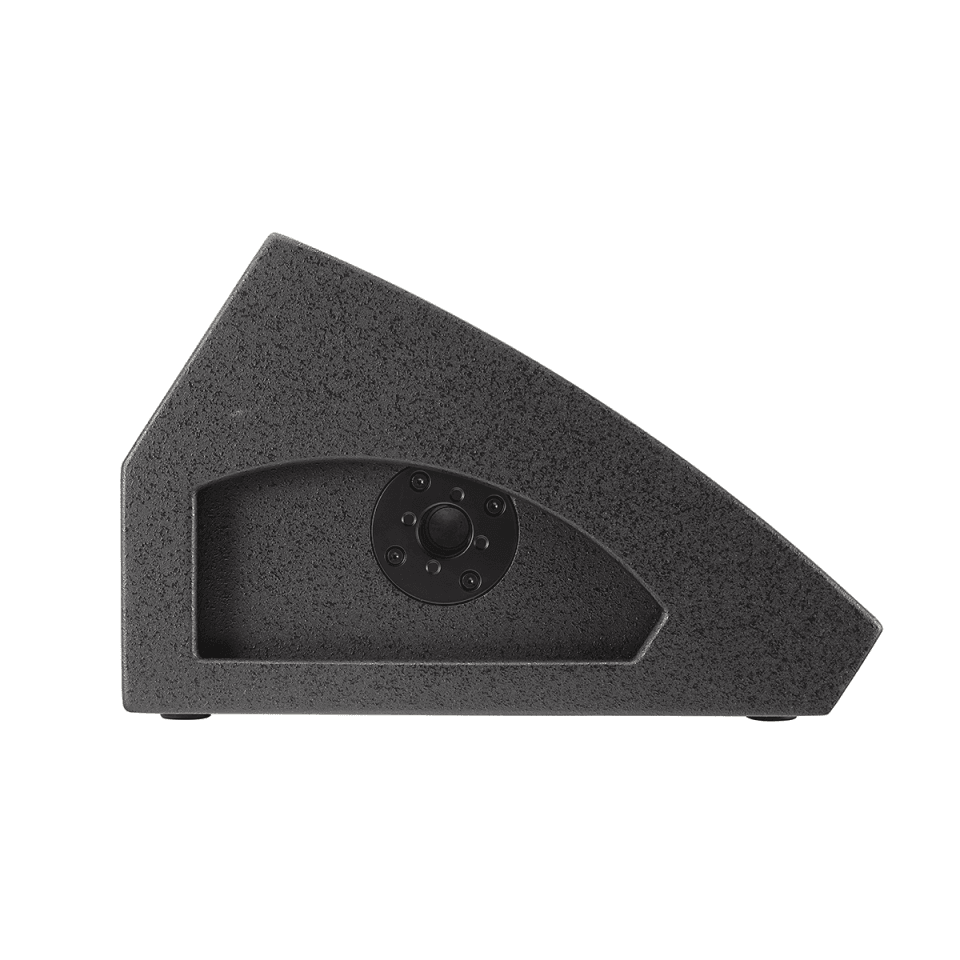

CHECKLINE-12A 12" Bi-Amped Coaxial Stage Monitor with built-in DSP

Download product sheet
CHECKLINE Coaxial Stage Monitor Series is the answer to those rental companies, sound engineers, and bands who need robust, elegant, and handy tools on the stage, but without giving up on high-performance and sonic quality. All three models of the series offer full-range coaxial woofers. The Bi-Amp module delivers 350W (RMS)/ 1000W (Peak) power with ab... Read more »
CHECKLINE Coaxial Stage Monitor Series is the answer to those rental companies, sound engineers, and bands who need robust, elegant, and handy tools on the stage, but without giving up on high-performance and sonic quality. All three models of the series offer full-range coaxial woofers. The Bi-Amp module delivers 350W (RMS)/ 1000W (Peak) power with absolute sound clarity and reliability. The internal DSP ensures maximum dynamics, overloads and overheating control, and offers 2 EQ factory presets (Full-range, Monitor) and other 5 used-defined, with different equalization curves designed for all main applications. Whether they are used as monitor, full-range speaker, front fill or delayed speaker for indoor/outdoor applications with large dimensions, the CHECKLINE series is the perfect ready-to-use solution for audio professionals. Collapse text

Product downloads

Product details

Key features

  • High-Performance and sonic clarity
  • 1.000W (Peak) Class-D bi-amped power module
  • 48kHz/24-bit DSP with 2+5 EQ presets, 3-band EQ, Low-Cut, Delay (up to 100m)
  • Dual-Band Peak/Overload/Thermal Limiter
  • Easy-to-Use DSP Graphic Interface with LCD display and Single Encoder
  • Two combo inputs (XLR/6.3 jack with MIC/LINE switches)
  • Stereo Line RCA Input
  • Two boutique-quality microphone preamps
  • Rugged, texture-painted plywood enclosure
  • Sophisticated coaxial transducers
  • 90°x90° sound coverage
  • More Key features Less Key features

Specifications

  • System Type
    Self-powered 12" two-way, coaxial
  • Frequency Range (-10 dB)
    55 Hz - 20 KHz
  • Frequency Response (±3 dB)
    64 Hz - 20 KHz
  • Coverage Pattern
    90° x 90° nominal (HxV)
  • HF Horn
    Coaxial (included)
  • Crossover Modes
    Active / DSP
  • Crossover Frequency
    2.300 Hz
  • Power Rating (Continuous/Program)
    350W /1.000W
  • Maximum SPL
    127 dB SPL peak
  • LF Driver
    1x12"/1" coaxial transducer
  • Digital Sound Processor
    48kHz/24bit

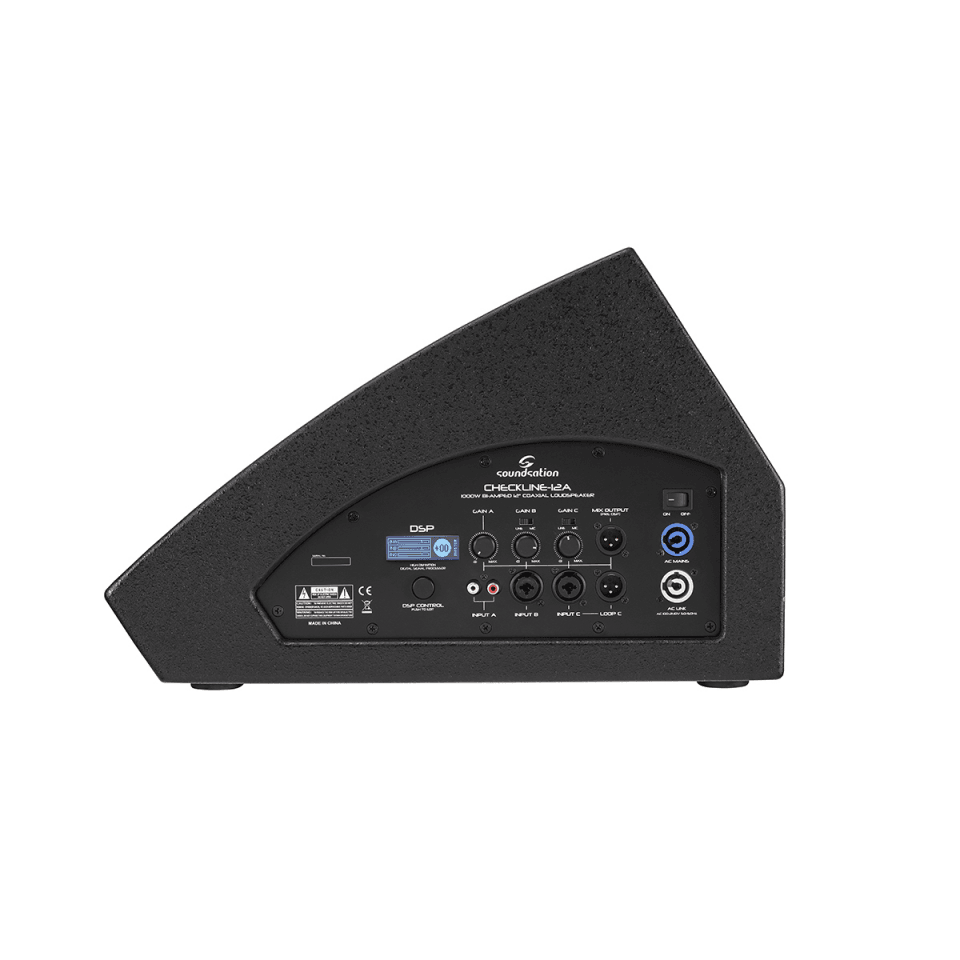

  • Input Connectors
    2x XLR combo female (Mic/Line)
  • Input Impedance
    9.09kohm (XLR Combo)
  • Output Connectors
    1x XLR mix output, 1x XLR loop input C
  • Enclosure
    15mm, birch plywood
  • Mounting
    35 mm pole socket
  • Monitor Angle
    32°
  • Transport
    2 integrated handles
  • Finish
    Black spot painting
  • Grille
    Powder coated, black, perforated steel with acoustic transparent foam
  • Dimensions (WxHxD)
    420 x 336.6 x 450 mm
  • Net Weight
    14 kg
  • Optional Accessories
    CHECKLINE-12 BAG (SKU Code J129J)
