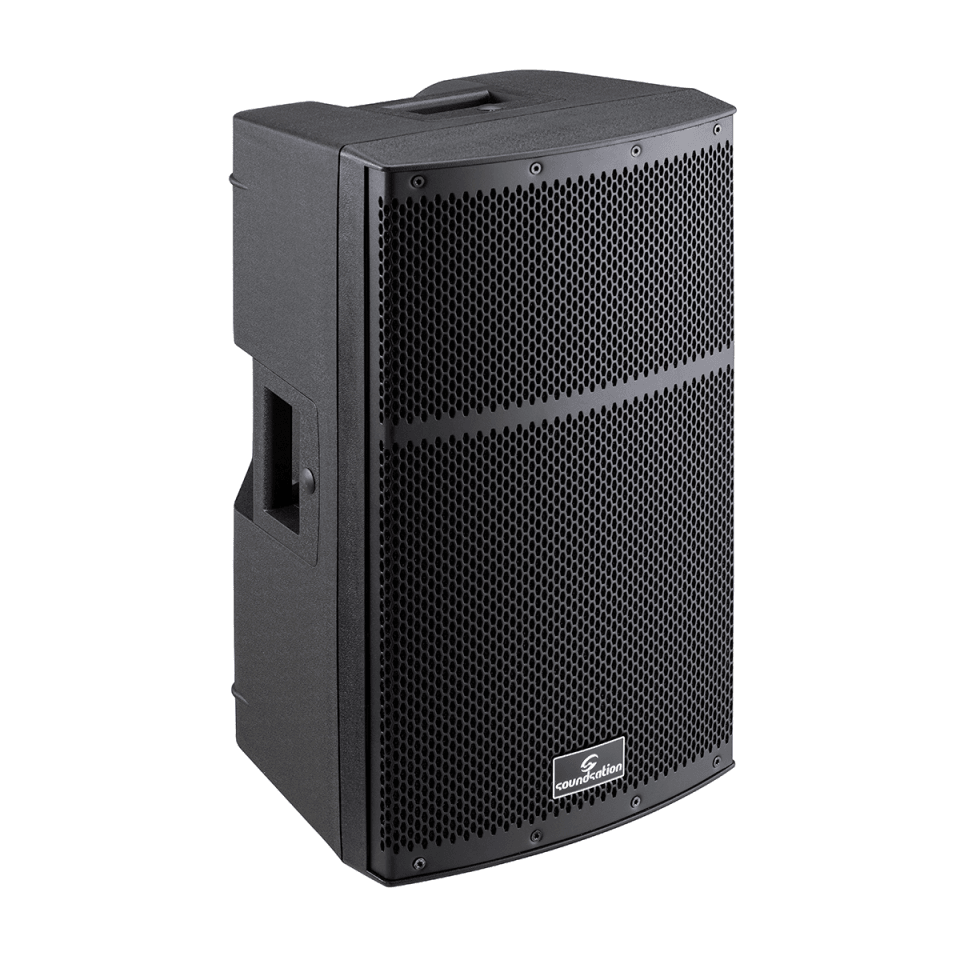

HYPER TOP 12A 1000W 12" Polypropylene bi-amped active speaker

Download product sheet
HYPER series is the result of years of experience gathered by Soundsation in Portable Sound systems.This speaker line is built with a sturdy, lightweight and stylish polypropylene enclosure with full metal grille and acoustic foam to protect the transducers. The cutting-edge design, according to latest industry standard, offers both a great look and a... Read more »
HYPER series is the result of years of experience gathered by Soundsation in Portable Sound systems.This speaker line is built with a sturdy, lightweight and stylish polypropylene enclosure with full metal grille and acoustic foam to protect the transducers. The cutting-edge design, according to latest industry standard, offers both a great look and an optimal sound quality. All models are equipped with a Class D amp and switching power supply to deliver massive power with great efficiency and light weigh. (with the exception of the 6”). MIC and Line inputs to connect all major input sources, being microphones, mixers or media players. Featuring four M8 flying points distibuted on each side, 1 handle on top and a standard D36mm pole mount hole it is ideal for both fixed installation or portable applications. Collapse text

Product downloads

Product details

Key features

  • 2-Way bi-amped Active Speaker
  • High resonance, sturdy and lightweight polypropylene cabinet with full metal grille and foam soundproof material
  • Class D amplifier for Low-frequencies; Class-AB for High-frequencies. 1000W total power (800W+200W)
  • 12" woofer and 1.35" driver

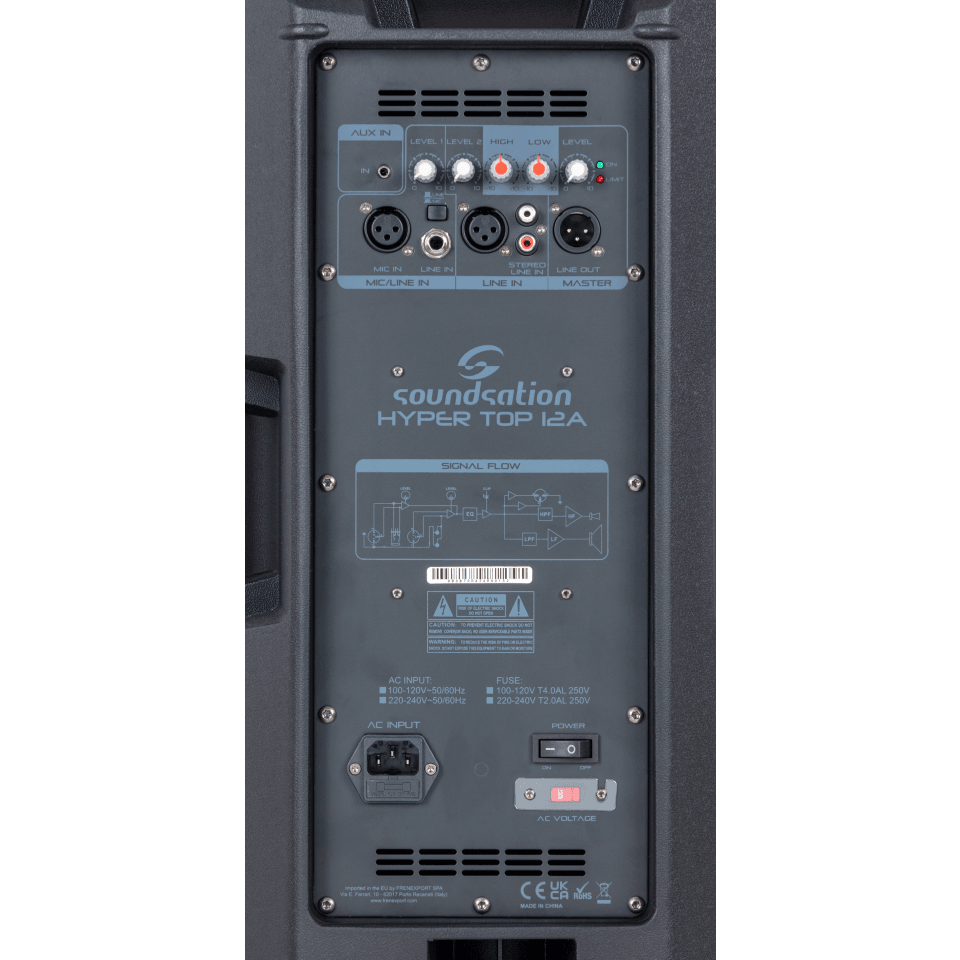

  • Microphone/line inputs XLR + jack jack ¼”, line XLR/RCA stereo, mini jack for convenient connection of smartphones and tablets
  • XLR output link out
  • Volume for each channel, master volume and equalization Hi/LOW controls

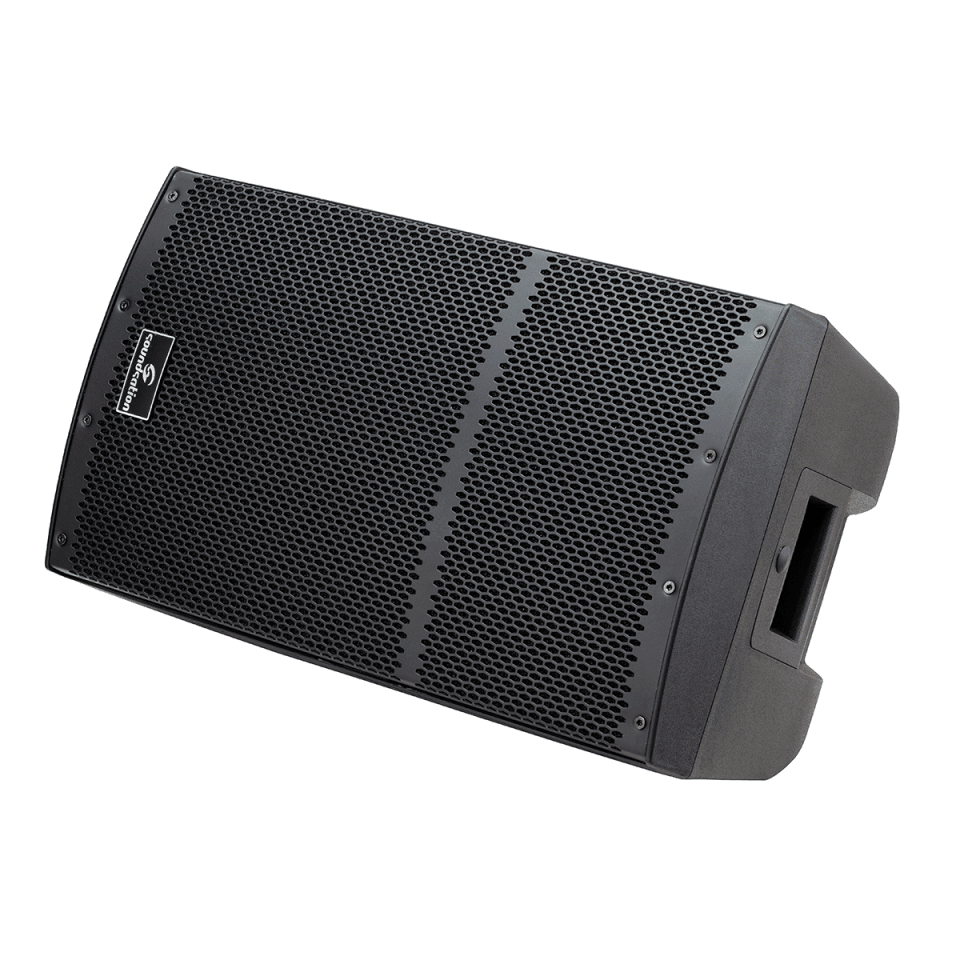

  • Suited for stage monitor use at 30°/45°
  • Top and side handle allow easy carrying
  • 36mm pole mount
  • 4 M8 flying points, one each side
  • Dimensions (WxHxD): 355 x 611 x 350 mm
  • Weight: 14,6 Kg
  • More Key features Less Key features

Specifications

  • 2-Way active bi-amped speaker
  • Woofer
    12" with 2.5" voice coil
  • Compression driver
    1.35” voice coil, 1” throat
  • Horn
    90° x 60°, symmetric
  • Frequency Response [- 10dB]
    48Hz - 19KHz
  • Frequency Response [- 3dB]
    53Hz - 19KHz
  • Max SPL
    119dB
  • Sensitivity
    95dB
  • Amplifiers
    Class-D (Low freq.); Class-AB (High Freq.)
  • Power (Peak/Rated)
    1000W (800+200W) / 500W (400+100W)
  • Crossover
    2.8KHz, 24dB/Oct.
  • EQ
    High (2.5KHz, +/- 12 dB); Low (150Hz, +/- 12 dB)
  • LEDs
    Power On (Green), Clip (Red)
  • Power Requirement
    230Vac - 50 Hz
  • Minimum Power Consumption
    250W
  • Power Connector
    VDE with T2A-250V Fuse
  • Dimensions (WxHxD)
    355 x 611 x 350 mm
  • Weight
    14,6 Kg
  • More Specifications Less Specifications
