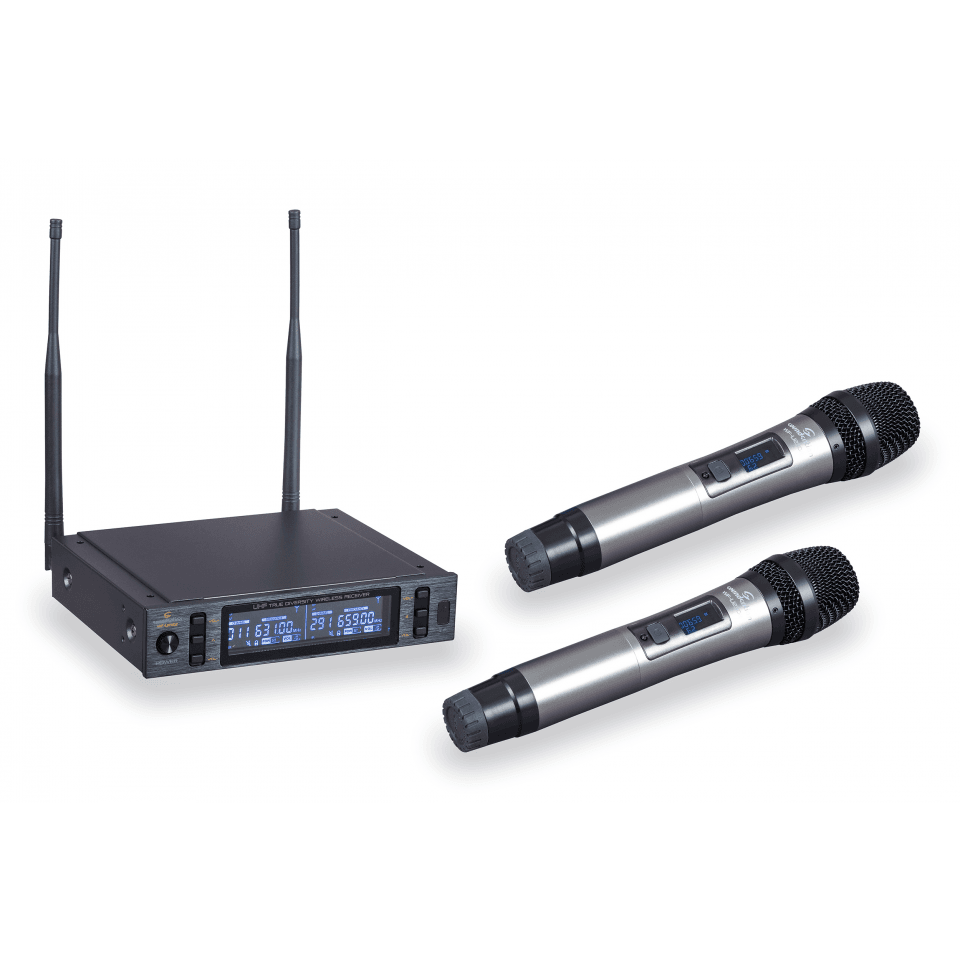

WF-U2302HH True Diversity Dual Wireless Microphone System with 2 handheld microphones 630-660MHz

Download product sheet

WF-U2302 is a dual UHF True Diversity professional wireless microphone with 300 channels for each microphone, and a simple and intuitive user interface.

“True Diversity” means that the receiving system is equipped with two antennas, two receiving circuits and a device capable of continuously choose the stronger and interference-free signal. This techn... Read more »

WF-U2302 is a dual UHF True Diversity professional wireless microphone with 300 channels for each microphone, and a simple and intuitive user interface.

“True Diversity” means that the receiving system is equipped with two antennas, two receiving circuits and a device capable of continuously choose the stronger and interference-free signal. This technology is used for both single systems (WF-U1300 Series) or dual systems (WF-U2302).

The WF-U2302 is built with leading technology that allows the integration of many of the major functions - such as amplification section, digital signal processing, PLL (Phase-Locked Loop) frequency synthesis, and more - into a single CHIP. This allows us to offer highly professional performance yet cost-effective products.

The WF-U2302 is also equipped with the automatic frequency search system and IR sync system for channel synchronization between receiver and transmitter in a quick way. Furthermore, the Digital Pilot Technology not only allows to monitor reception level and battery charge, but even to operate with multiple systems without problems.

Finally, there are two optional kit for rack mounting of 1 or 2 receivers, respectively, on 1 or 2 standard 19” rack units. Ask your dealer or visit SOUNDSATION website www.soundsationmusic.com for further details.

Collapse text

Buy online

Search Google Shopping

Product downloads

Product details

Key features

  • UHF True Diversity Technology to a¬¬vert Interferences
  • 300 Preset Frequencies and IR Matching System for Quick Setup
  • 630-660MHz UHF Band

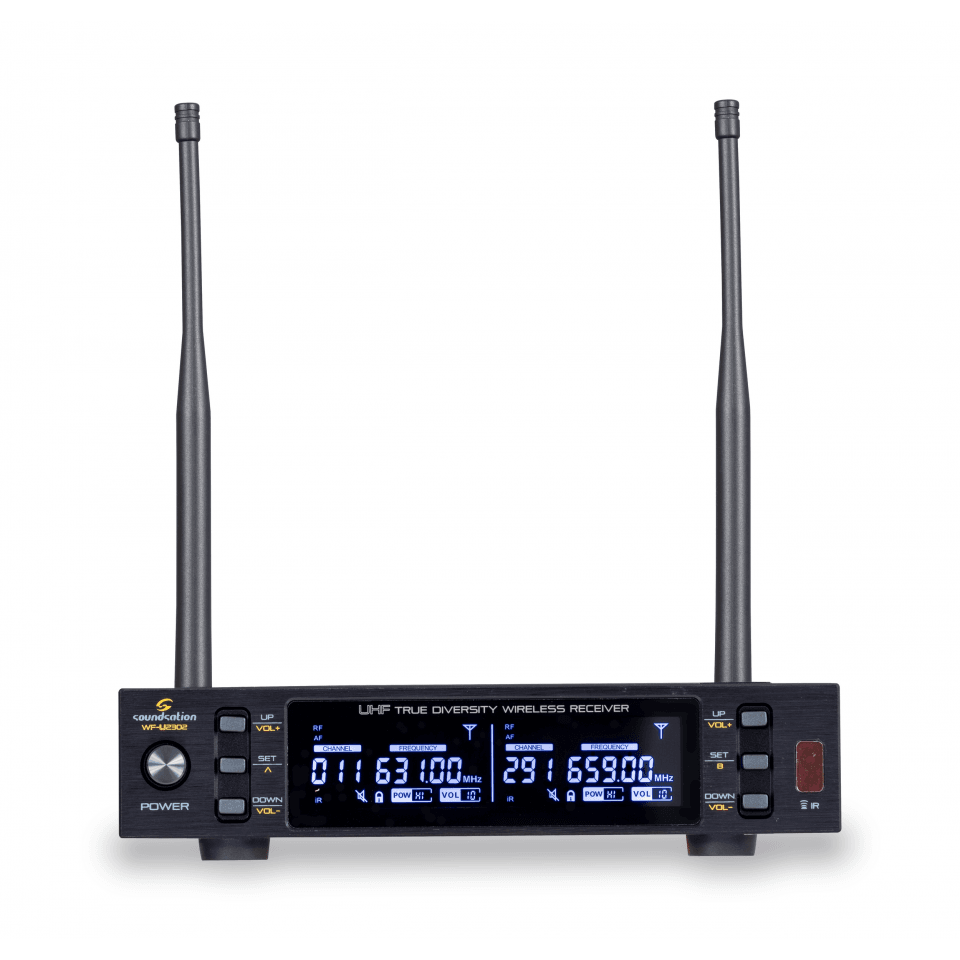

  • Simple and Outright User Interface with LCD display on Transmitter and Receiver
  • Digital Pilot Technology to allow Multisystem Operation
  • Transmitter AF-level and Battery-Low Monitoring directly on the Receiver
  • 80m Ideal Distance (without obstacles)
  • Professional Handheld Microphone with Dynamic Cardioid Capsule

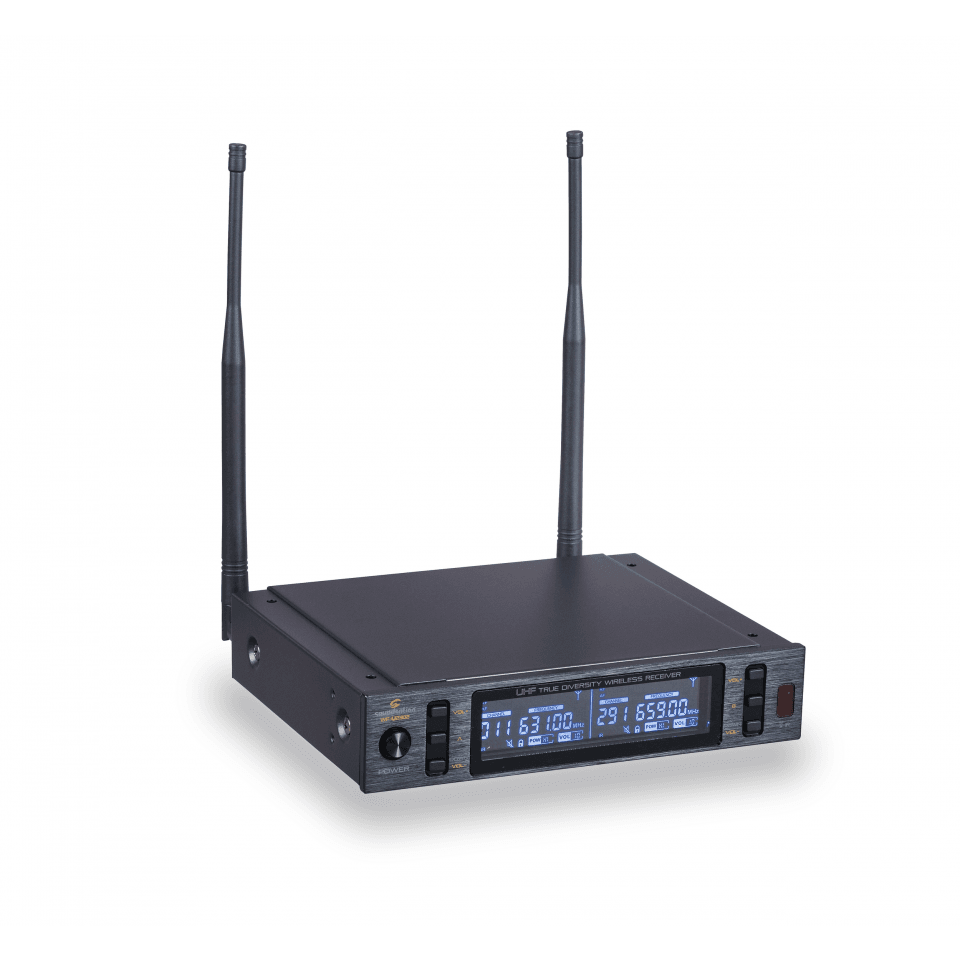

  • Half 19” Rack Unit with metal housing and removable antennas
  • Optional Rack-Mount Kits for 1 o 2 units
  • More Key features Less Key features

Specifications

  • Carrier Frequency
    UHF 630-660 MHz
  • Dynamic Range
    >90dB
  • Frequency Response
    40Hz-15KHz ±3dB
  • Audio Output Level

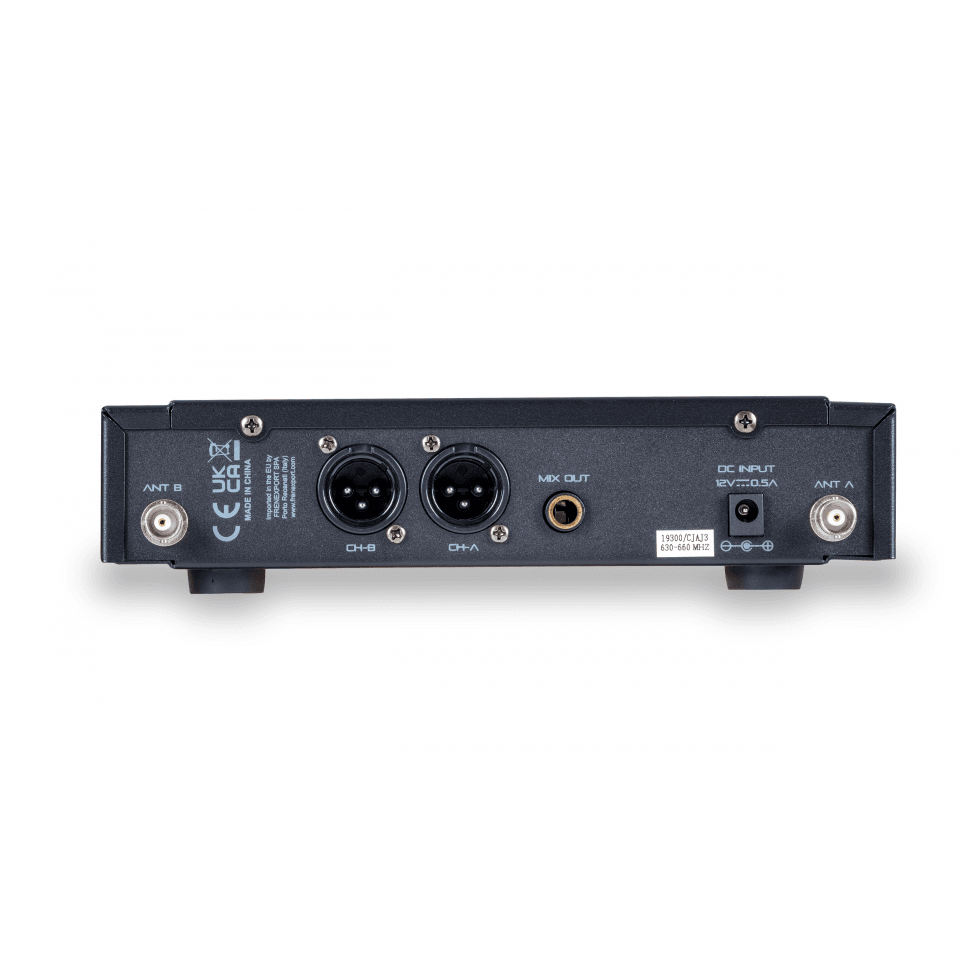

    Balanced 400mV; Unbalanced 400mV
  • Packing Dimensions (WxHxD)
    435 x 104 x 321 mm
  • Packing Gross Weight
    2.5 kg
  • Receiver Power Supply
    DC 12V / 500mA
  • Consume Power
    7W
  • Signal/Noise Ratio
    >90dB
  • Receiving Sensitivity
    5dBuV
  • Receiver Dimensions (WxHxD)
    210 x 43 x 187 mm (antennas not incl.)
  • Antenna
    max. 255 mm
  • Net Weight
    0.53 kg
  • Transmitter Power
    30mW (Max)
  • Modulation Type
    FM
  • Battery Voltage
    3V (2x1.5V AA Battery)
  • Continuous Using
    5 hours
  • Hand-held Mic. Dimensions (W/DxH)
    Ø35 (min) - Ø53 (max) x 260 mm
  • Hand-held Mic. Net Weight
    0.335 kg (batteries included)
