WF-U2600HP Dual UHF True Diversity Multi-Channel Wireless Microphone System

Download product sheet
WF-U2600 is a dual UHF True Diversity professional wireless microphone with 240 channels for each microphone, and a simple and intuitive user interface. “True Diversity” means that the receiving system is equipped with two antennas, two receiving circuits and a device capable of continuously choose the stronger and interference-free signal. The WF-U260... Read more »

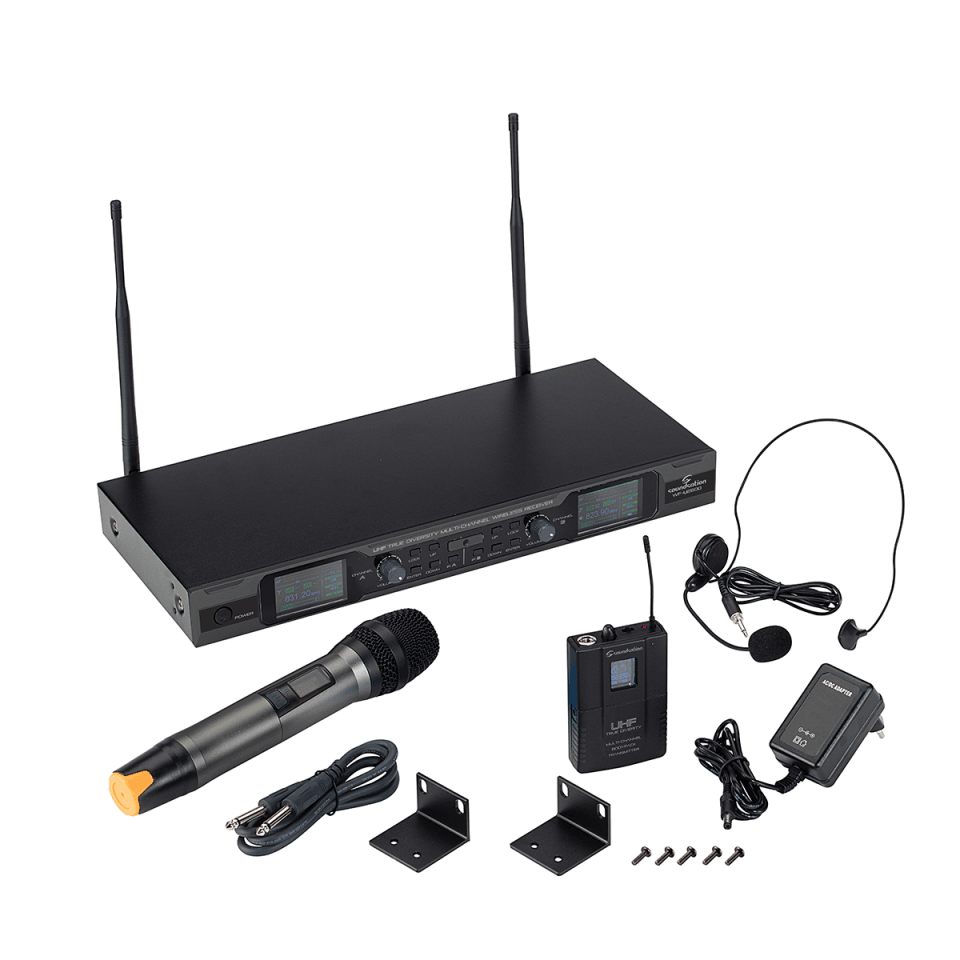

WF-U2600 is a dual UHF True Diversity professional wireless microphone with 240 channels for each microphone, and a simple and intuitive user interface. “True Diversity” means that the receiving system is equipped with two antennas, two receiving circuits and a device capable of continuously choose the stronger and interference-free signal. The WF-U2600 is built with leading technology that allows the integration of many of the major functions - such as amplification section, digital signal processing, PLL (Phase-Locked Loop) frequency synthesis, and more - into a few CHIPs. This allows us to offer highly professional performance yet cost-effective products. The WF-U2600 is also equipped with the automatic frequency search system and IR sync system for channel synchronization between receiver and transmitter in a quick way. Furthermore, the Digital Pilot Technology not only allows to monitor reception level and battery charge, but even to operate up to 200 sets multiple systems without problems. Finally, the receiver comes with a kit for mounting in 1 standard 19” rack unit. The kit is composed by two L-shape adapters and four screws to mount them on both receiver sides. WF-U2600HH system is composed one Hand Transmitter with Professional Dynamic Cardioid Capsule, one Pocket Transmitter, one Headset Microphone with Professional Condenser Cardioid Capsule, and one Dual UHF True Diversity Receiver. Collapse text

Product downloads

Product details

Key features

  • UHF True Diversity Technology to Avert Interferences
  • 240 Preset Channels for each microphone
  • IR Matching System for Quick Setup
  • 630-660MHz UHF Band
  • Simple and Outright User Interface

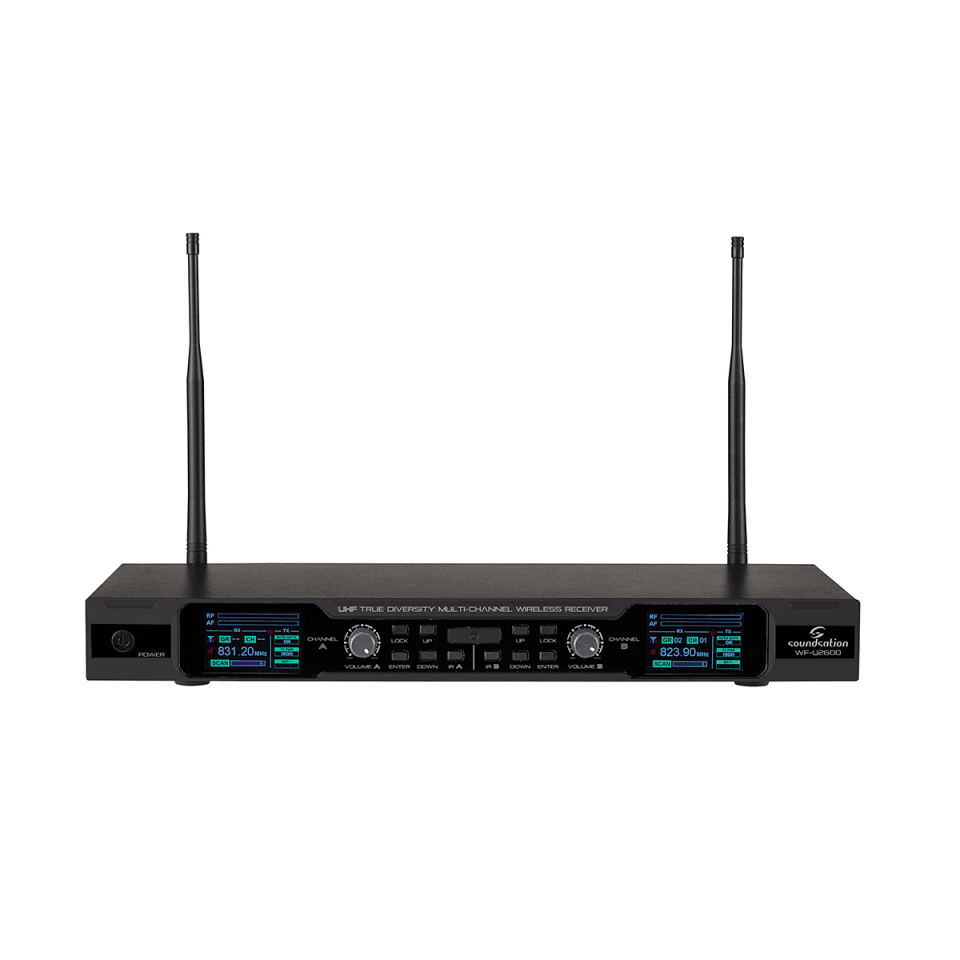

  • LCD display on Transmitters and TFT color displays on Receiver
  • Digital Pilot Technology to allow up to 200 systems operation simultaneously without interferences
  • Transmitter AF-level and Battery-Low Monitoring directly on the Receiver
  • Automatic mute function (on handheld microphone only)
  • 80m Ideal Distance (without obstacles)
  • Professional Hand held Microphone with Dynamic Cardioid Capsule
  • Body-pack with Connector Locking System
  • Professional and Lightweight Headset with High-Sensibility Condenser Cardioid Capsule
  • 19” Rack-Mount adapter kit included
  • More Key features Less Key features

Specifications

  • Carrier Frequency
    UHF630-660MHz
  • Frequency Stabilization
    < ±30ppm
  • Dynamic Range
    >100dB
  • Total Harmonic Distortion
    <0.5%
  • Frequency Response
    40Hz-15KHz ±3dB
  • Audio Output Level

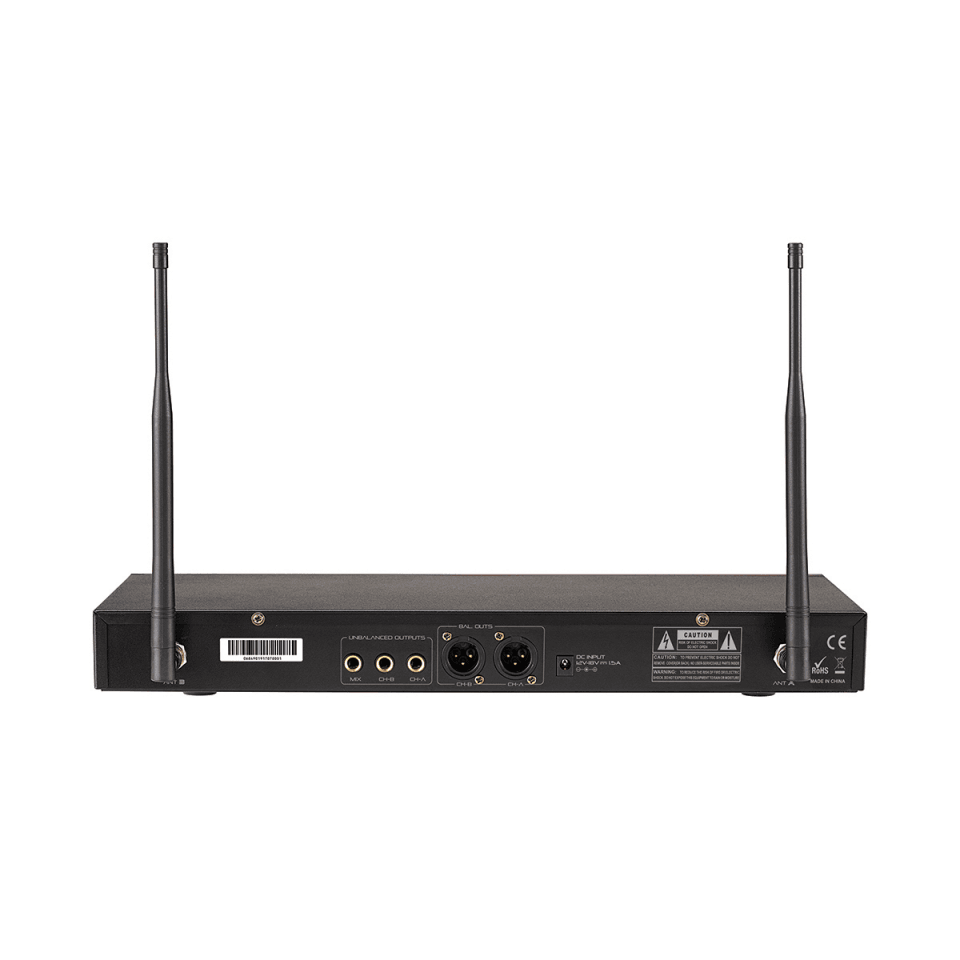

    Balanced 400mV; Unbalanced 400mV
  • Packing Dimensions (WxHxD)
    473 x 75 x 408 mm
  • Packing Gross Weight
    3.4 kg
  • Receiver Power Supply
    DC 13.5V / 1.5A
  • Receiver Power Consumption
    5W
  • Signal/Noise Ratio
    >95dB
  • Receiving Sensitivity
    5dBuV
  • De-Emphasis
    50uS
  • Receiver Size (WxHxD)
    420 x 50 x 220 mm (antennas not incl.)
  • Antenna
    255 mm (not bent)
  • Receiver Net Weight
    2.02 kg
  • Transmitter Power
    10mW(Max)
  • Modulation Type
    FM
  • Max Deviation
    ±25KHz
  • Transmitter Battery Voltage
    3V (2x1.5V AA Battery)
  • Continuous Using
    5 hours
  • Hand-held Mic. Size (W/DxH)
    Ø35 (min) - Ø53 (max) x 260 mm
  • Pocket Transmitter Size (W/DxH)
    62 x 103 x 30 mm
  • Hand-held Mic. Net Weight
    0.335 kg (batteries included)
  • Pocket Transmitter Net Weight
    0.132 kg (batteries included)
