WF-AD100 UHF Wideband antenna divider system with 2 Inputs and 8 Outputs

Download product sheet

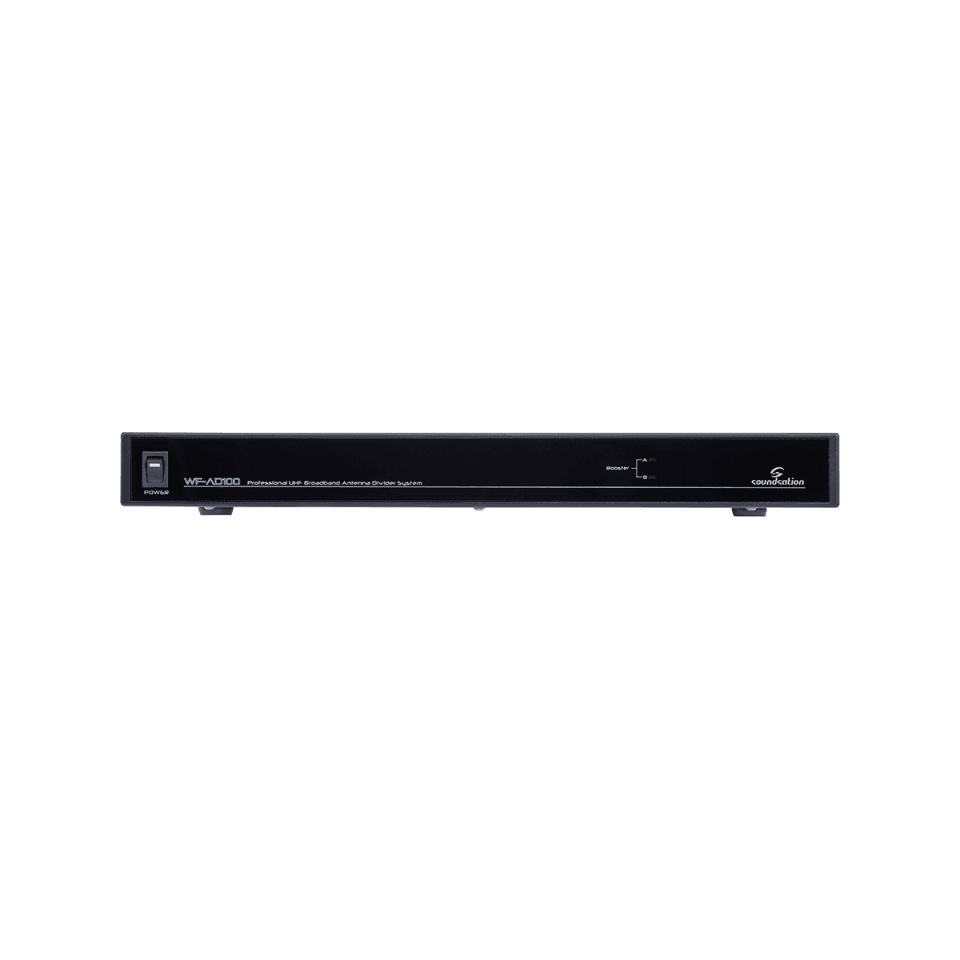

WF-AD100 is optimized for the carrier frequency 470 ~ 1000 MHz and is capable of handling 2 ~ 4 sets of UHF receivers with diversity to operate from a simple pair of antennas, greatly simplifying the antenna installations and increasing the distance and reception efficiency. It adopts the latest range of high dynamic and low noise components with advan... Read more »

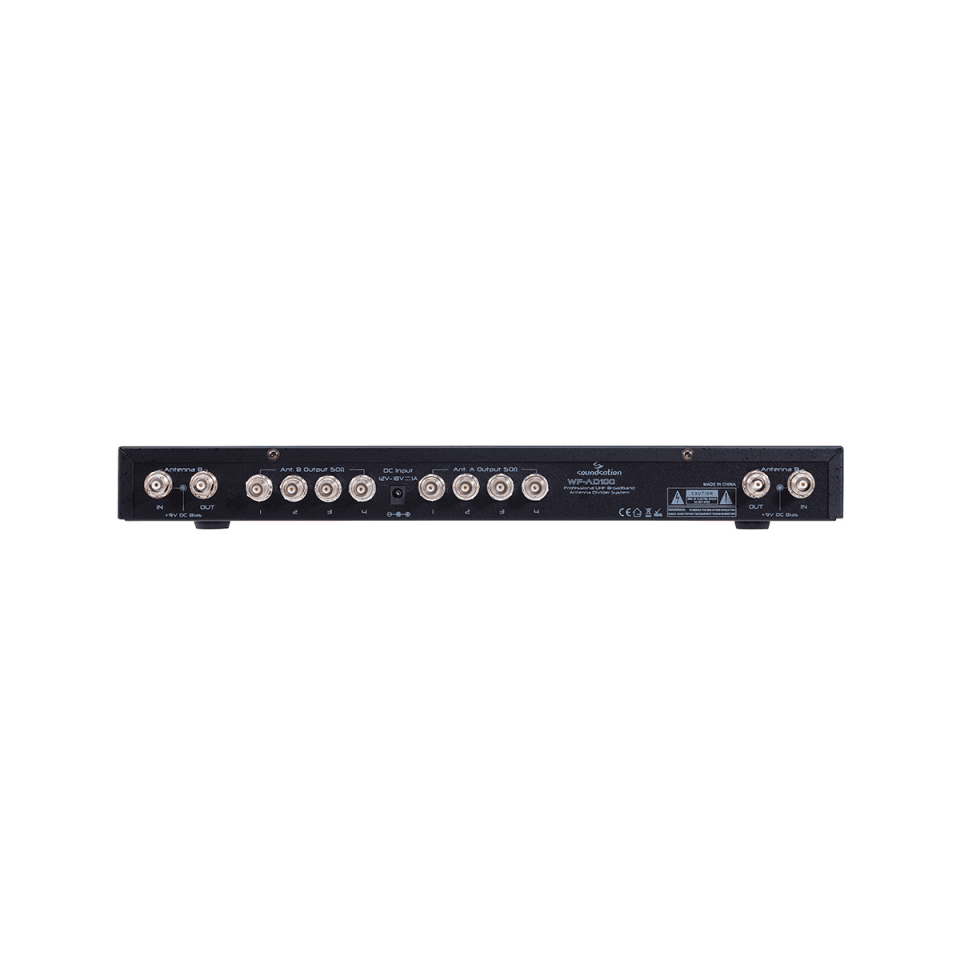

WF-AD100 is optimized for the carrier frequency 470 ~ 1000 MHz and is capable of handling 2 ~ 4 sets of UHF receivers with diversity to operate from a simple pair of antennas, greatly simplifying the antenna installations and increasing the distance and reception efficiency. It adopts the latest range of high dynamic and low noise components with advanced circuit design so as to have very low modulation distortion and the elimination of spurious interference in the use of multiple systems. The output gain of the system is approximately equal to 1. It comes with 2 sets of antenna Input/Output connectors (BNC female) and 2 sets of 4-channel antenna output connectors (BNC female) for direct connection to 4 groups of receivers with diversity. Collapse text

Product downloads

Product details

Specifications

  • Power Supply
    12÷15V DC
  • Bandwidth
    470MHz ÷ 1000MHz
  • IIP3: +32dBm
  • RF Output Gain
    +0.1dB ÷ +1dB
  • Input-Output Gain
    +0.1dB ÷ +1dB
  • Output Isolation Rate
    > 18dB between 470 ÷ 1000MHz
  • Band Selecting
    Low end > 35dB; High end > 30dB
  • Input-Output Impedance
    50 Ohm
  • Antenna connectors
    BNC Female
  • Accessories

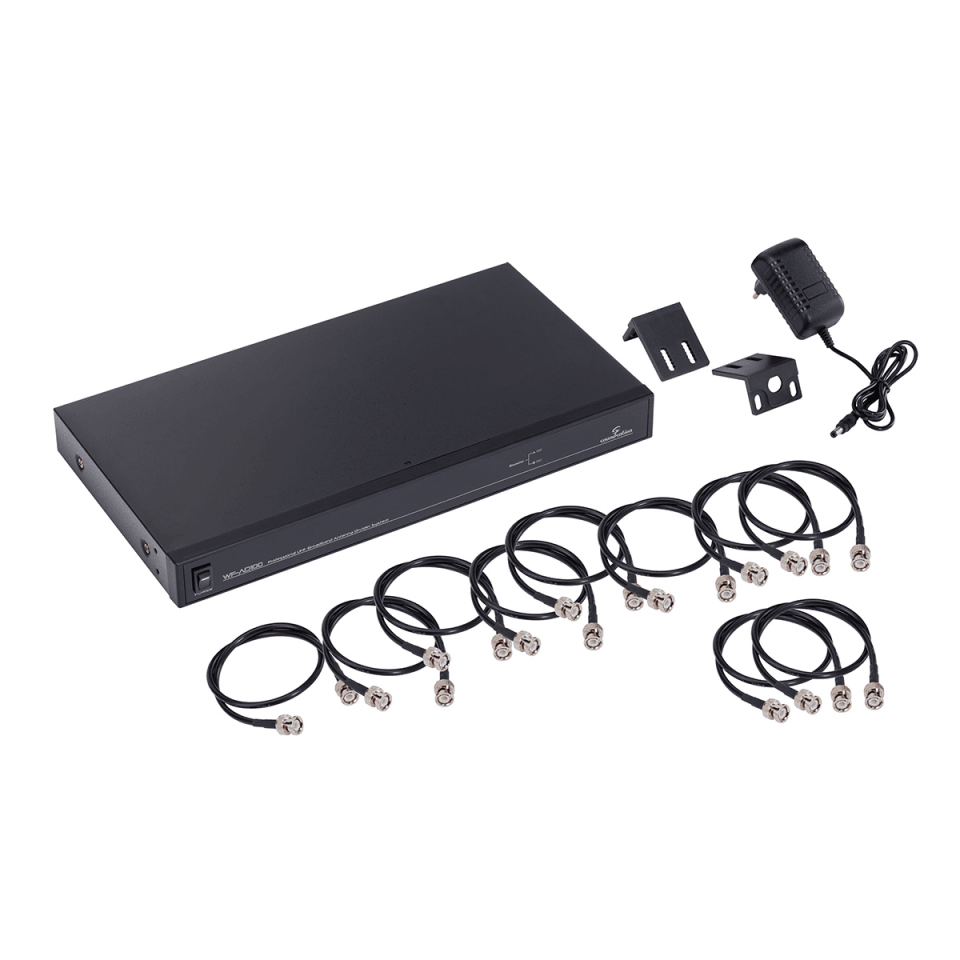

    10 x BNC-BNC signal cables (50cm) ; 1 x AC/DC Adapter ; 2 x Rack Mount Brackets ; 1 x User manual
  • Dimensions(WxHxD)
    420x45x240mm
  • Packing Size(WxHxD)
    549x110x301mm
  • Weight
    1,8Kg
  • Packing Weight
    3,5Kg
