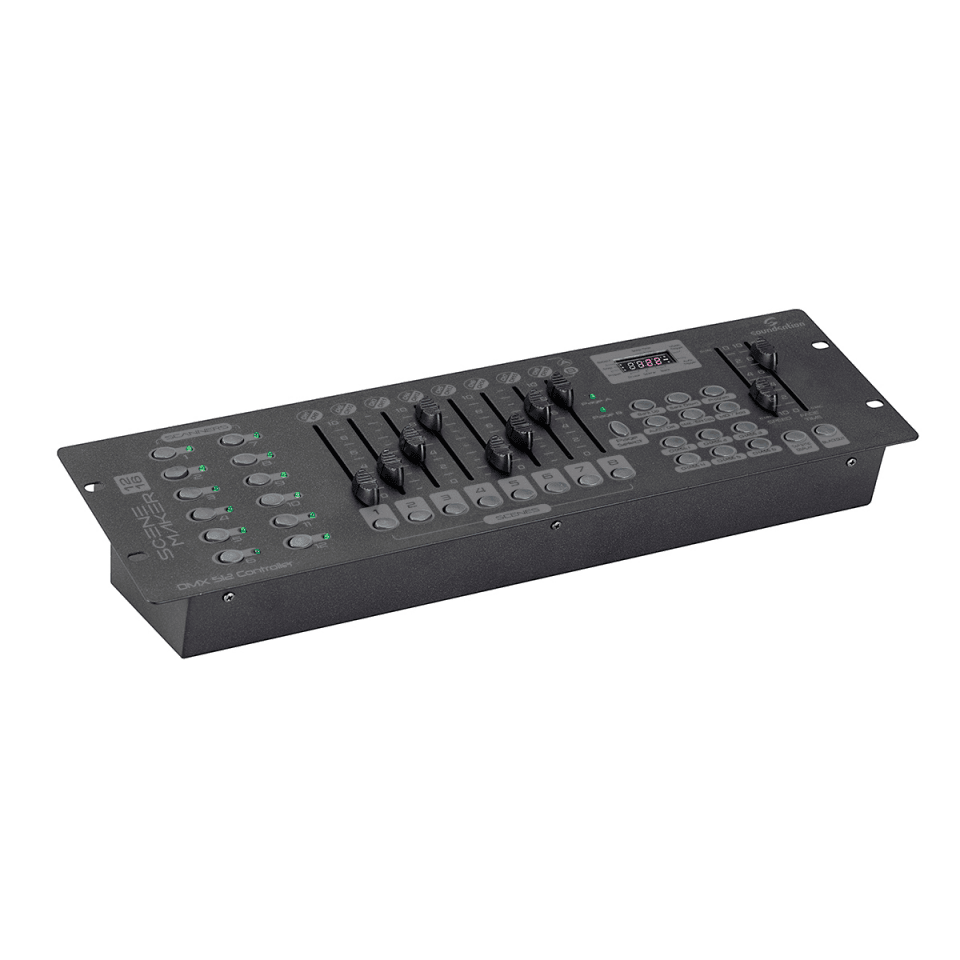

SCENEMAKER 1216 DMX512 Lighting Controller

Download product sheet
SCENEMAKER 1216 is a universal intelligent lighting controller. It allows you to manage up to 12 fixtures composed of 16 channels each (192 channels in total), and up to 184 programmable scenes. Six chases can contain up to 184 steps composed by the saved scenes (the steps) and in any order. Programs can be triggered by MIDI, automatically or manually.... Read more »

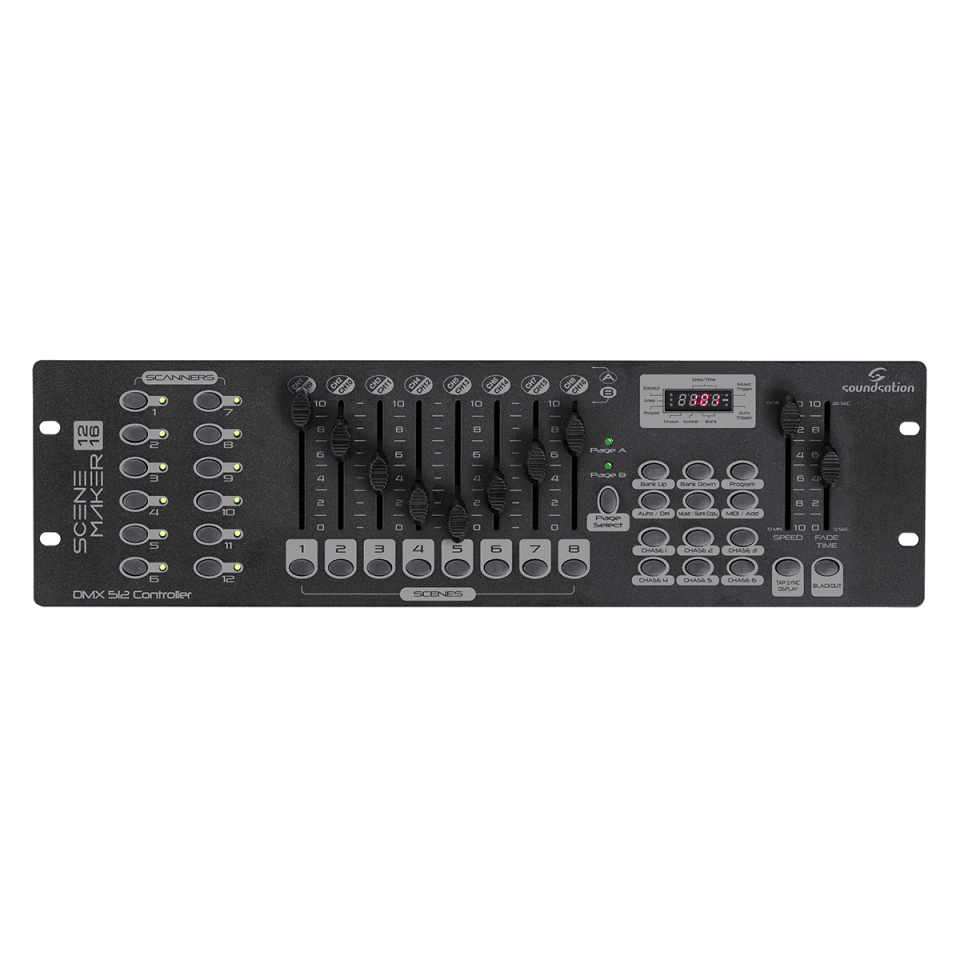

SCENEMAKER 1216 is a universal intelligent lighting controller. It allows you to manage up to 12 fixtures composed of 16 channels each (192 channels in total), and up to 184 programmable scenes. Six chases can contain up to 184 steps composed by the saved scenes (the steps) and in any order. Programs can be triggered by MIDI, automatically or manually. Its control surface hosts various programming tools such as 8 universal channel sliders, quick access scanner and scene buttons, as well as a LED display for easier navigation of controls and menu functions. Collapse text

Product downloads

Product details

Key features

  • 12 Fixtures with 16 DMX Channels each; 192 Channels in total
  • 23 banks of 8 programmable scenes, 184 scenes total
  • 6 chases of 184 programmed scenes from 23 banks
  • Execute multiple chases simultaneously
  • 8 Sliders x 2 Pages for direct control of channels
  • Auto Mode controlled by Speed and Fade Time
  • 8-CH / 16-CH modes for Assigned or Reversed DMX channels
  • Master Blackout
  • USB connection for LED Goose-neck Lamp (Not included)
  • LED Display for easy navigation of menus
  • MIDI control over banks, chases and Blackout
  • More Key features Less Key features

Specifications

  • Power Supply
    DC 9V-12V, 500mA min.
  • USB Lamp (not included)
    5V - 200 mA max
  • Protocols
    DMX-512 USITT

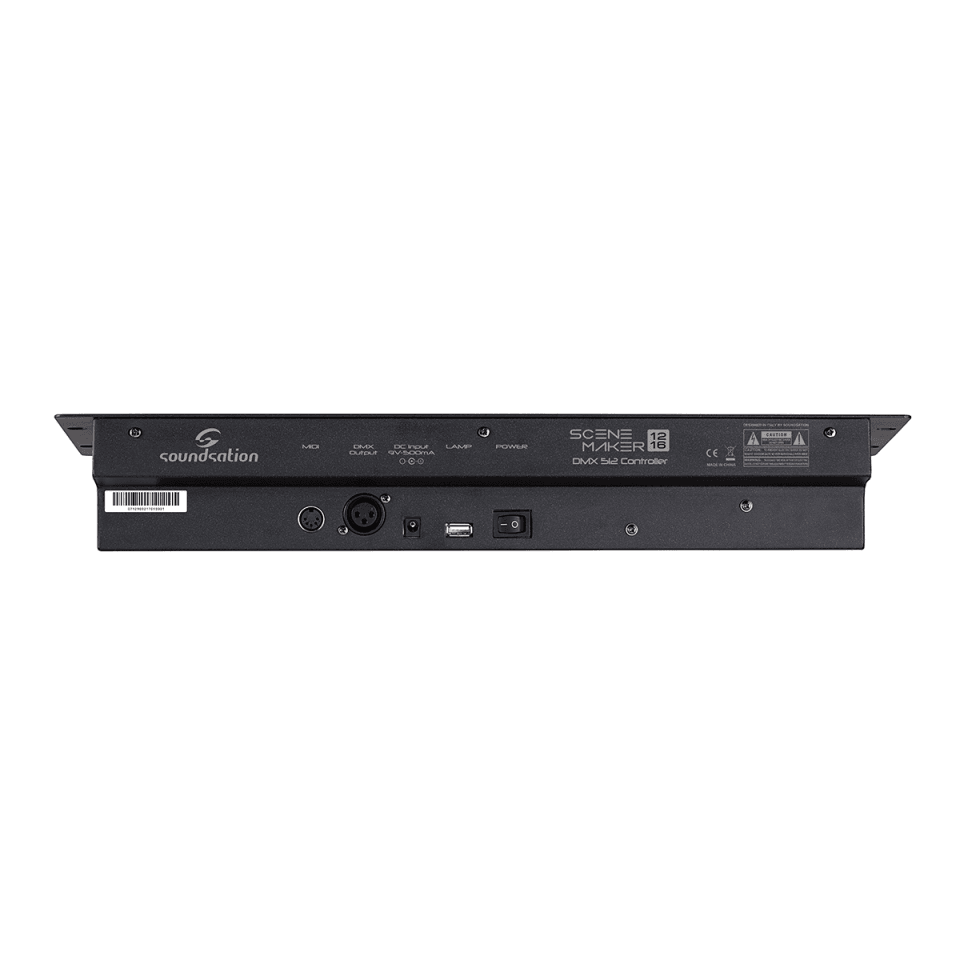

  • Data Input
    Locking 3-pin XLR male socket
  • Data Output
    Locking 3-pin XLR female socket
  • Data Pin Configuration
    Pin 1 shield, Pin 2 (-), Pin 3 (+)
  • Controller Size (WxHxD)
    482x82x133 mm
  • Net Weight 2.0 kg
  • Packing Dimension (WxHxD)
    560x135x185 mm
  • Packing Gross Weight
    2.6 kg
  • More Specifications Less Specifications
