4LEDKIT-DJ 7x3W LED Tricolor 4-PAR Lighting Kit

Download product sheet
SOUNDSATION 4LEDKIT-DJ brings you a complete light system including all accessories in only one package. It is the smartest solution for all musicians, DJs, and small rental companies. It comes complete with 4 compact LED spots. Each spot contains 7pcs 3Watt RGB 3in1 LEDs in order to create a complete color palette. The spots are mounted on a T-bar whi... Read more »

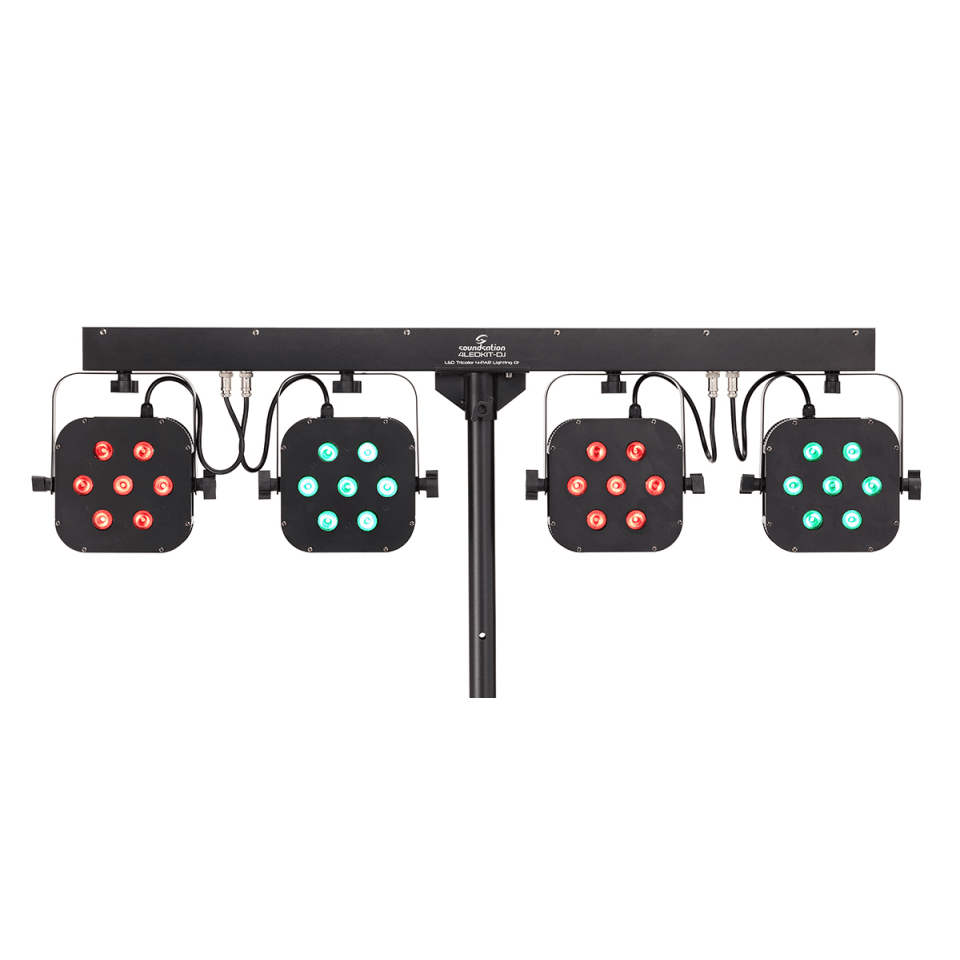

SOUNDSATION 4LEDKIT-DJ brings you a complete light system including all accessories in only one package. It is the smartest solution for all musicians, DJs, and small rental companies. It comes complete with 4 compact LED spots. Each spot contains 7pcs 3Watt RGB 3in1 LEDs in order to create a complete color palette. The spots are mounted on a T-bar which has a built-in controller unit. The T-bar can be controlled by the included pedal-board or by DMX. In addition to RGB color adjustment of all four PARs independently, the unit features 16 color change auto programs strobo and sound control, to let your lighting kit create wonderful effects even without a DMX controller. Collapse text

Product downloads

Product details

Key features

  • 4 PARs with 7 high-brightness 3W LED each

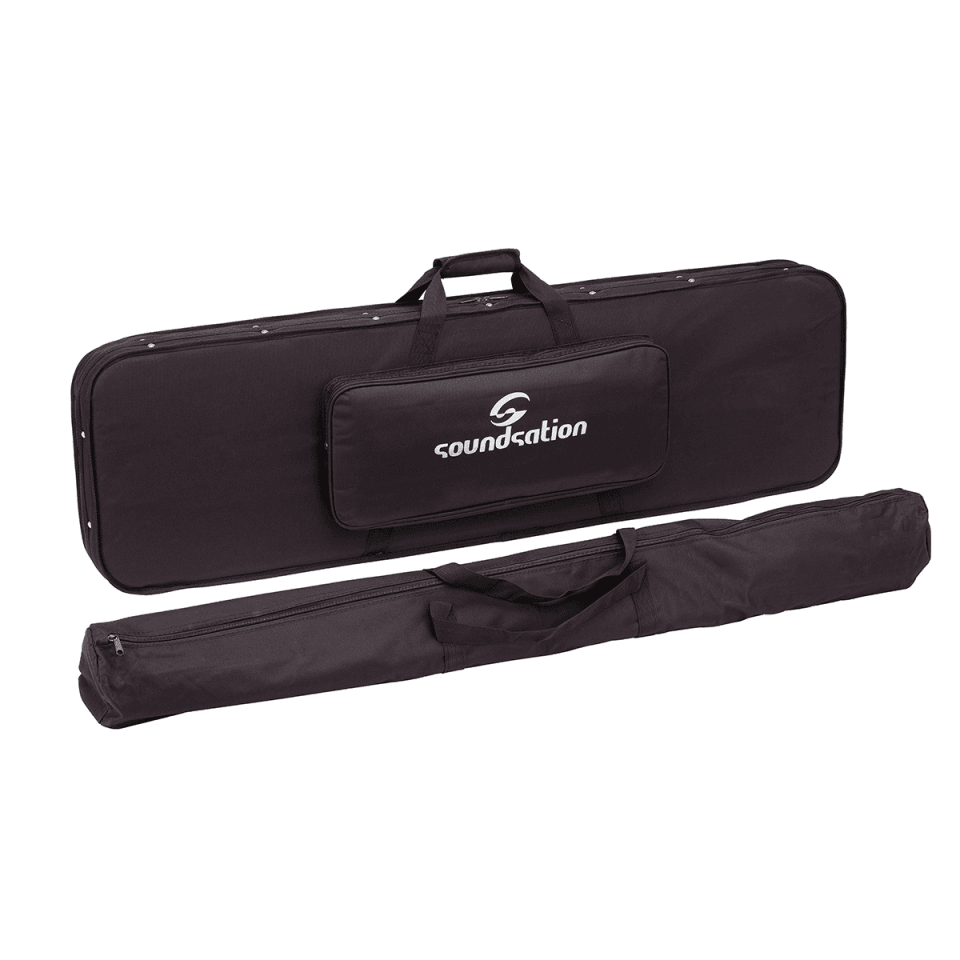

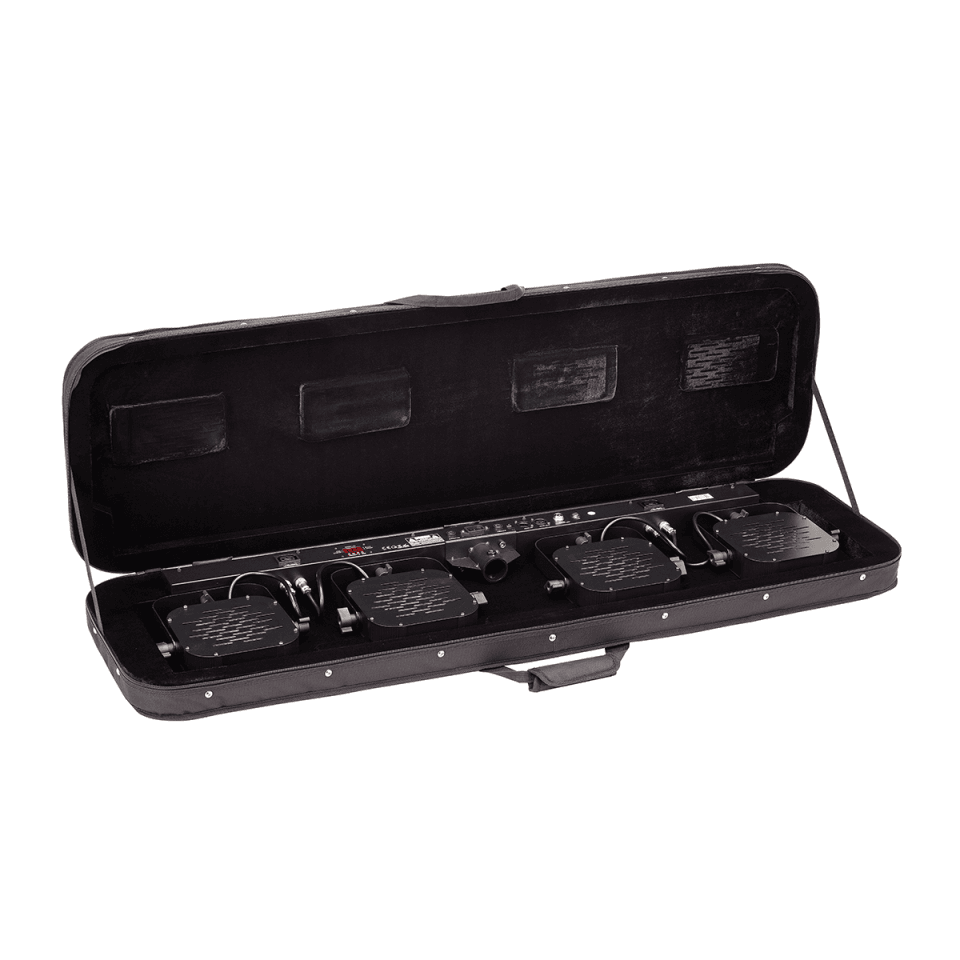

  • T-Bar with internal controller and power unit (carrying bag included)

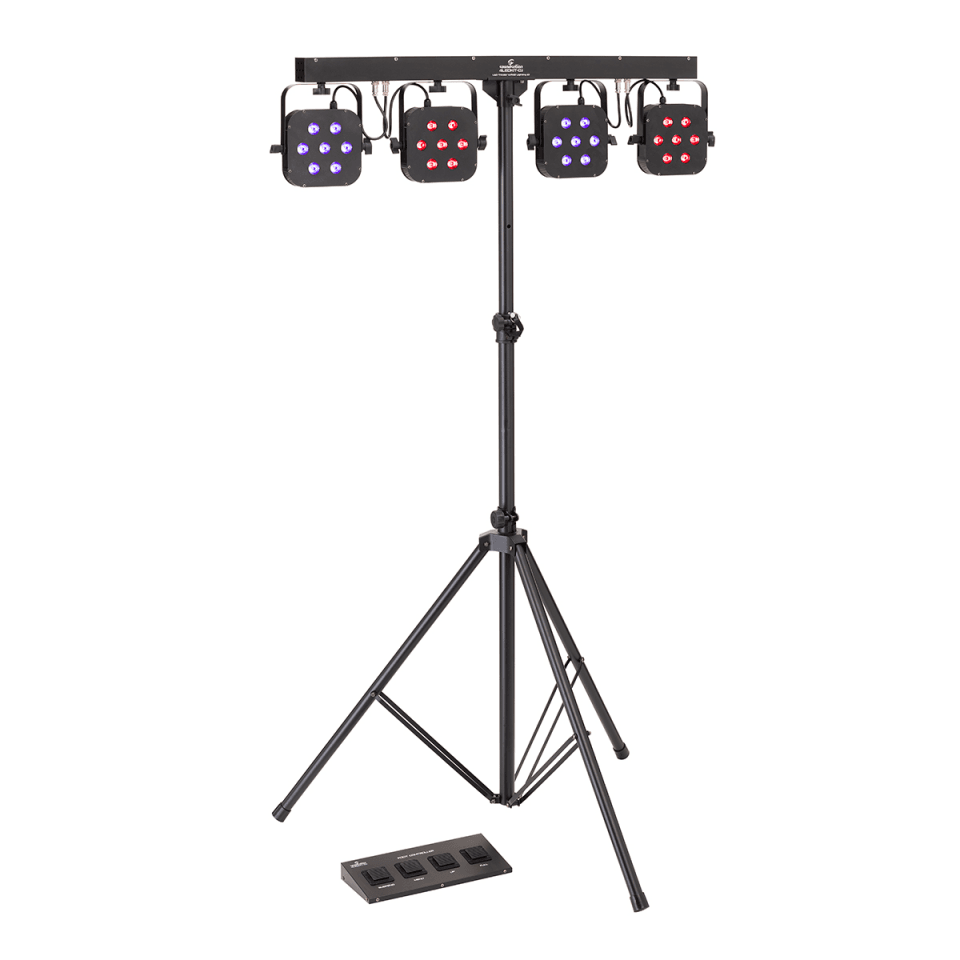

  • Tripod Stand with carrying bag included
  • Operation Modes: Auto, Sound, DMX, Footswitch modes
  • 8 Internal Programs, Sound Control and Strobe
  • DMX: 16CH, 12CH, 7CH, 3CH and 1CH modes
  • Lens Angle: 25° (on each LED)
  • LED Display for easy navigation and programming
  • Pedalboard with 4 footswitch
  • More Key features Less Key features

Specifications

  • Portable system of 4 PAR lights, built-in power supply and control unit
  • Light Source per PAR
    7 RGB 3in1 LED on each PAR (28 LEDs in total)
  • Beam angle
    25° (per LED)
  • DMX Channels
    1, 3, 7, 12, and 16CH modes
  • AC power
    100V-240V 50/60Hz Switching Power Supply
  • Power Consumption
    100W max.
  • Bar Size
    1170 x 160 x 60 mm
  • Bar Weight
    7 kg
  • Bar Bag Size
    1270 x 370 x 100 mm
  • Bar Bag Weight
    10 kg
  • Pedalboard Size
    380 x 60 x 200 mm
  • Pedalboard Weight
    1.4 kg
  • Tripod Height
    1240 mm (closed), 2240 mm (max.)
  • Packing (LxHxW)
    1290 x 160 x 530 mm
  • Packing Weight 14.5 kg
  • More Specifications Less Specifications
