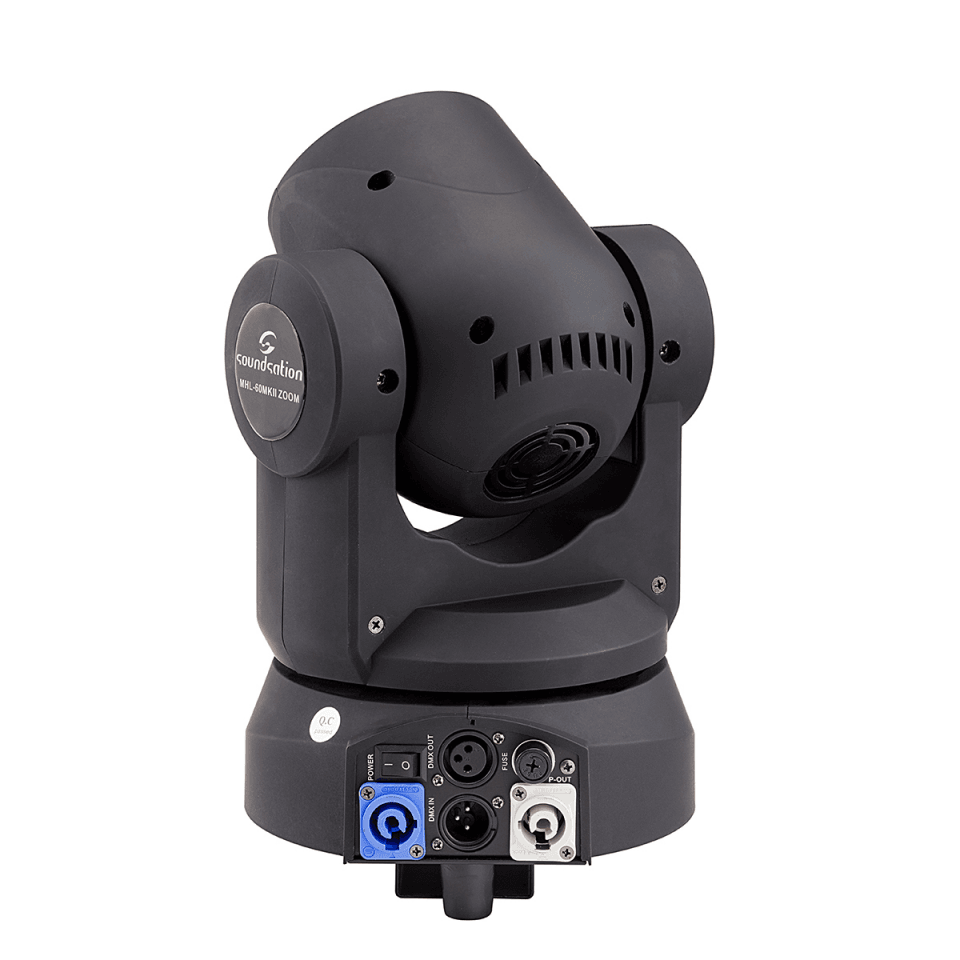

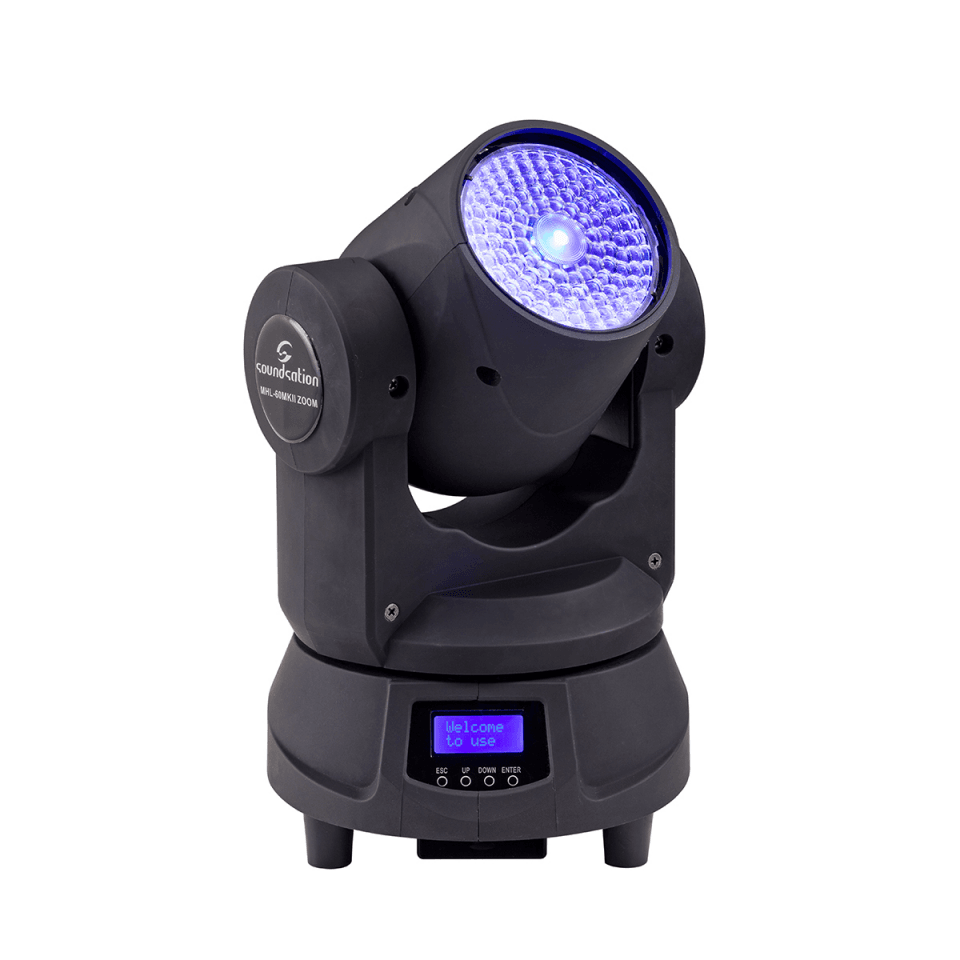

MHL-60 MKII ZOOM LED Beam Mobile Head with one 60W RGBW 4in1 LED and Zoom

Download product sheet
MHL-60-MKII is a compact beam moving head equipped with a single high brightness 60W RGBW 4in1 LED, extremely bright and reliable. Pan/Tilt movements are accurate and silent with 16-bit resolution. Zoom ranges from 2.5° and 60°. It can be used in either Master / Slave DMX, Manual, Auto (7 different modes) and Sound (2 modes). DMX512 control is 14CH.
MHL-60-MKII is a compact beam moving head equipped with a single high brightness 60W RGBW 4in1 LED, extremely bright and reliable. Pan/Tilt movements are accurate and silent with 16-bit resolution. Zoom ranges from 2.5° and 60°. It can be used in either Master / Slave DMX, Manual, Auto (7 different modes) and Sound (2 modes). DMX512 control is 14CH.

Product downloads

Product details

Key features

  • RGBW 4in1 60W ultra-bright LED
  • BZoom: 2.5° - 60°
  • Electronic dimmer: 0 - 100% linear
  • Strobo: 1 - 10t/s
  • Control mode : DMX512 15CH, Manual, Master/slave, Auto, Sound
  • Pan: 540°
  • Tilt: 220°
  • LCD Display user interface
  • Accessories: 1m Powercon mains cable; 1.5m DMX cable
  • More Key features Less Key features

Specifications

  • Max consumption rate
    85 watt
  • Power requirements
    AC 110-240V / 50~60Hz
  • Socket DMX IN
    3 pin XLR F
  • Socket DMX OUT
    3 pin XLR M
  • Mains socket
    Powercon
  • IP Protection
    IP20
  • Controllo DMX
    15CH
  • Dimensions
    20.1 x 19.6 x 31.7 cm
  • Net weight
    Kg 3.8
