Soundastion SPIRE Series

Soundastion
SPIRE Series

Essential but complete, compact but powerful.

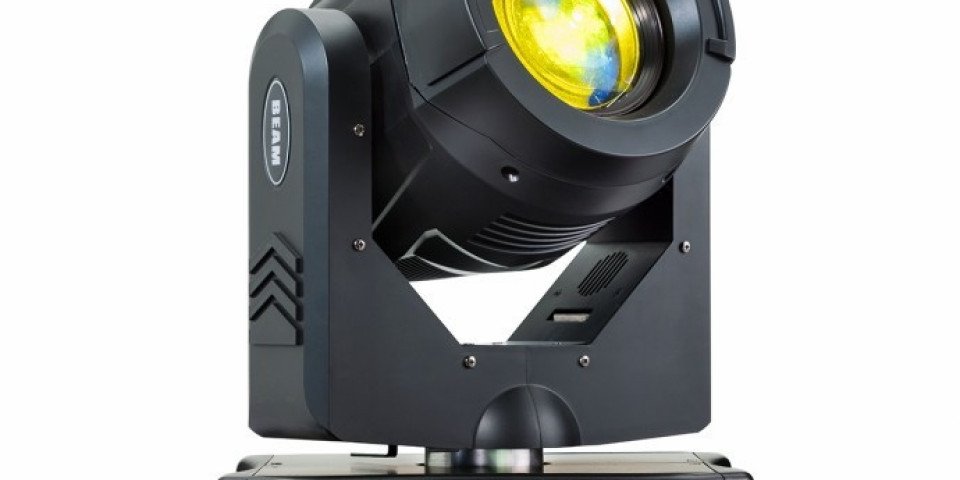

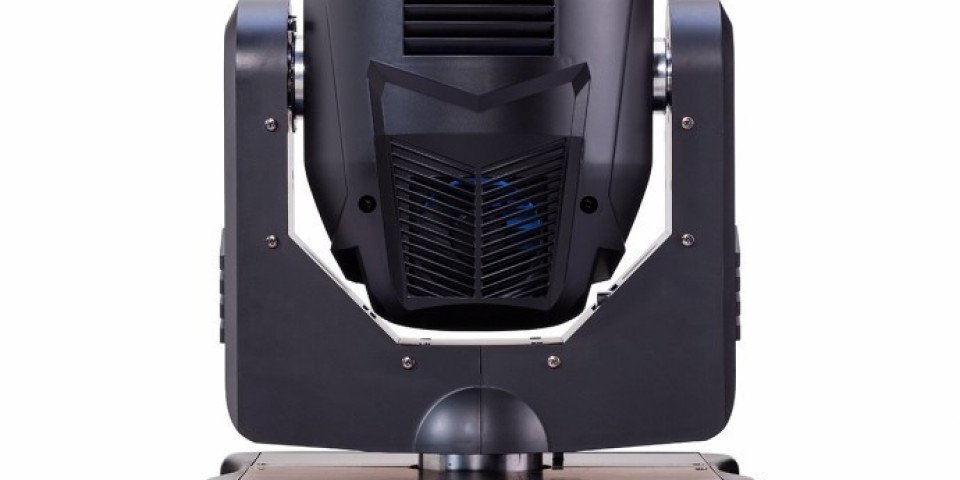

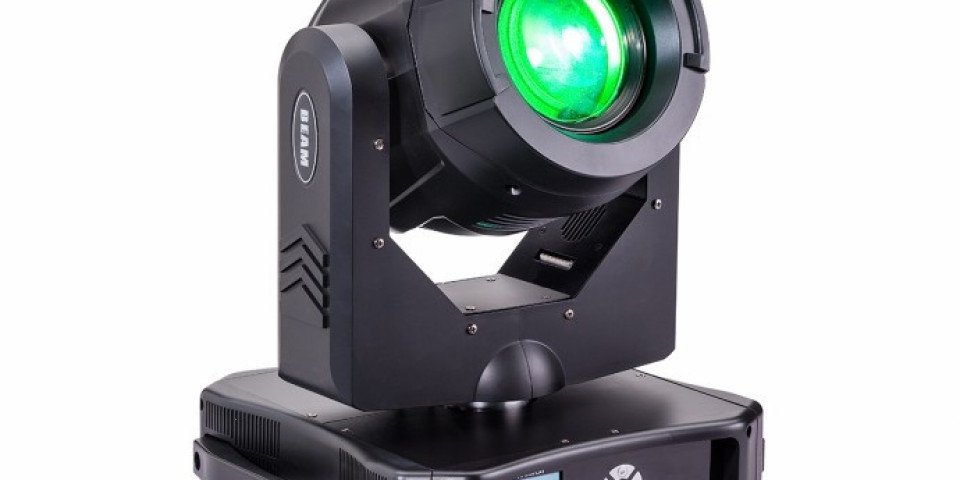

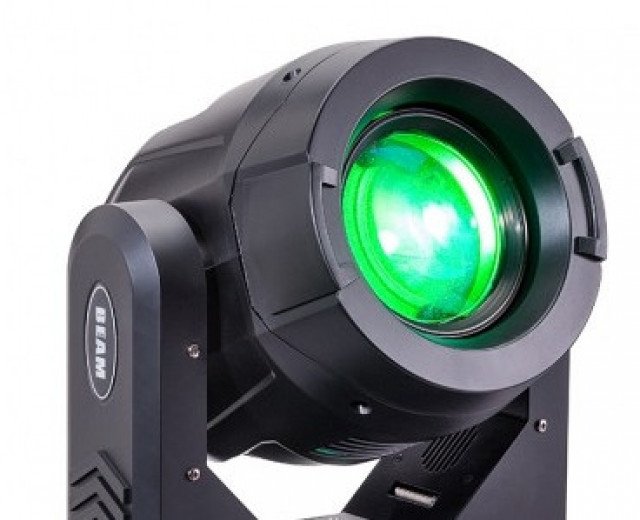

Soundsation, a Frenexport Spa brand, introduces SPIRE, a new series of moving heads. SPIRE is a solution developed by the Frenexport team of designers, with the clear objective of creating a product that meets the needs of those requiring an essential fixture, but one that can also create dynamic and original looks with solid mid-air effects. With SPIRE, particular attention has been paid to reducing the power consumption of the fixtures, and well as adding simplicity to transportation and setup.

The series is composed of three models, each with a different lamp: SPIRE 200 Beam with 200W 5R source, SPIRE 230 Beam with 230W 7R source and SPIRE 280 Beam with 280W 10R source. All moving heads within the SPIRE series are able to produce a beam from 0° to 4°, with the 5R source able to achieve 21,700 Lux @ 20m (205,000 Lux @ 1m). The extraordinarily silent, rapid and precise PAN and TILT movements are managed by three-step motors that guarantee a maintained position. Inside there is also a colour wheel with 14 dichroic slots + white and rainbow effect, as well as a fixed gobo wheel with 17 slots (6 coloured, 11 neutral and white). The two prisms, 8-facet and 16-facet, can be overlapped and are equipped with rotation and shake effect, allowing for the creation of innovative mid-air effects that will truly stimulate the creativity of the Lighting Designer. Other features include a shutter with a maximum strobe rate of 13Hz, as well as linear dimming. The SPIRE series can operate in two DMX512 modes, with 16 and 20 channels for simplified or advanced management. Included with the fixtures are self-locking brackets for positioning on truss, as well as power cable and DMX cable, making the fixtures ready to use straight out of the box!

The table below can be used to directly compare features between the different models, making it easier to choose the perfect machine for your needs.

p.p1 {margin: 0.0px 0.0px 0.0px 0.0px; text-align: justify; font: 12.0px Verdana; -webkit-text-stroke: #000000} span.s1 {font-kerning: none}

Want to see SPIRE at work and have the chance to test it with a DMX controller? Out Product Specialists wait at Frenexport’s headquarters, ready to offer you all the support and assistance you may need.


SPIRE 200 BEAM

SPIRE 230 BEAM

SPIRE 280 BEAM

Lamp

Standard metal-halide 5R (280W)

Standard metal-halide 7R (230W)

Standard metal-halide 10R (280W)

Consumption

350W

380W

400W

Colour Temperature

8000K

8000K

8000K

Luminosity

205.000 Lux@1m

217.500 Lux@1m

288.000 Lux@1m

Movement

540° Pan, 265° Tilt, Precise 16-bit Control Resolution, Photoelectric Reset and Correction

Shutter

Mechanically Controlled Shutter - Maximum 13Hz

DMX Channels

16CH/20CH

Gobo

11 Metal Gobos + 6 Glass Gobos + Open, Electronic Focus

Colour

14 Colours + Open, Rainbow Effect, Electronic Focus

CTO

3200K to 2500K

Prism

8 facet + 16 facet, Overlapping Prisms with Shake Effect

Dimmer

Linear from 0-100%

Dimension

270 x 500 x 326 mm

Weight

17.1 kg
