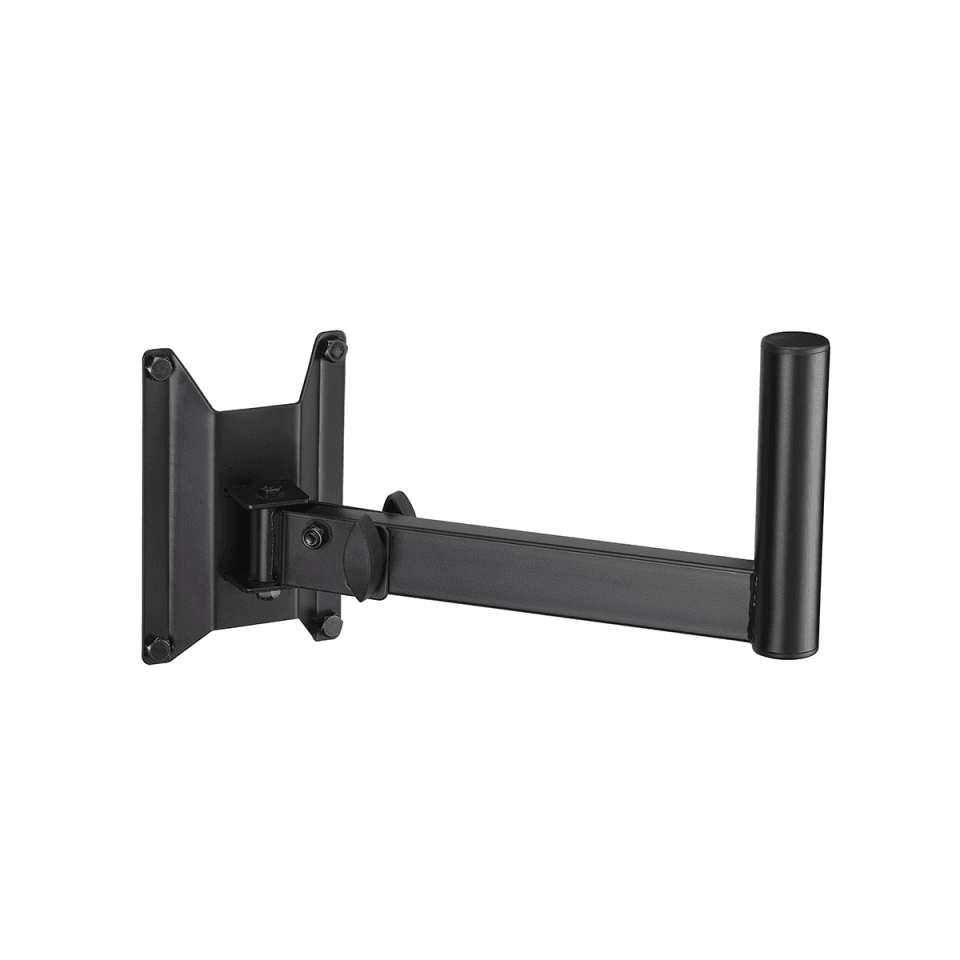

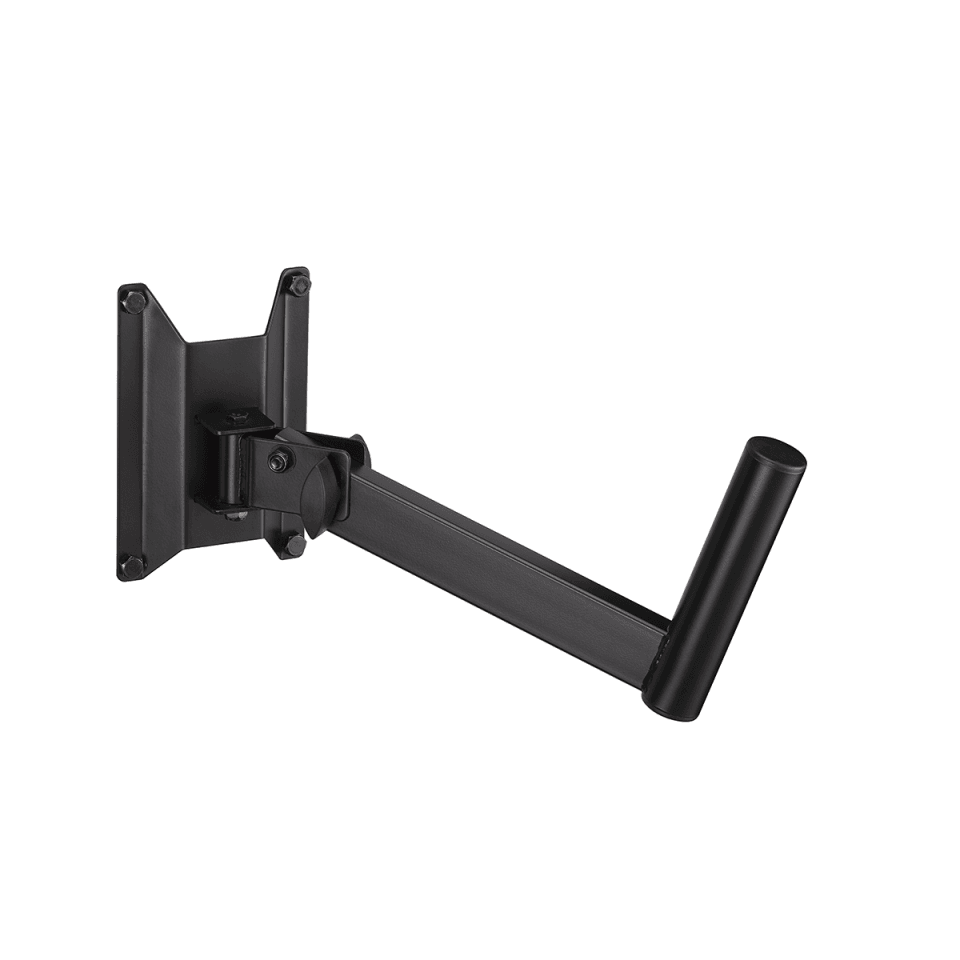

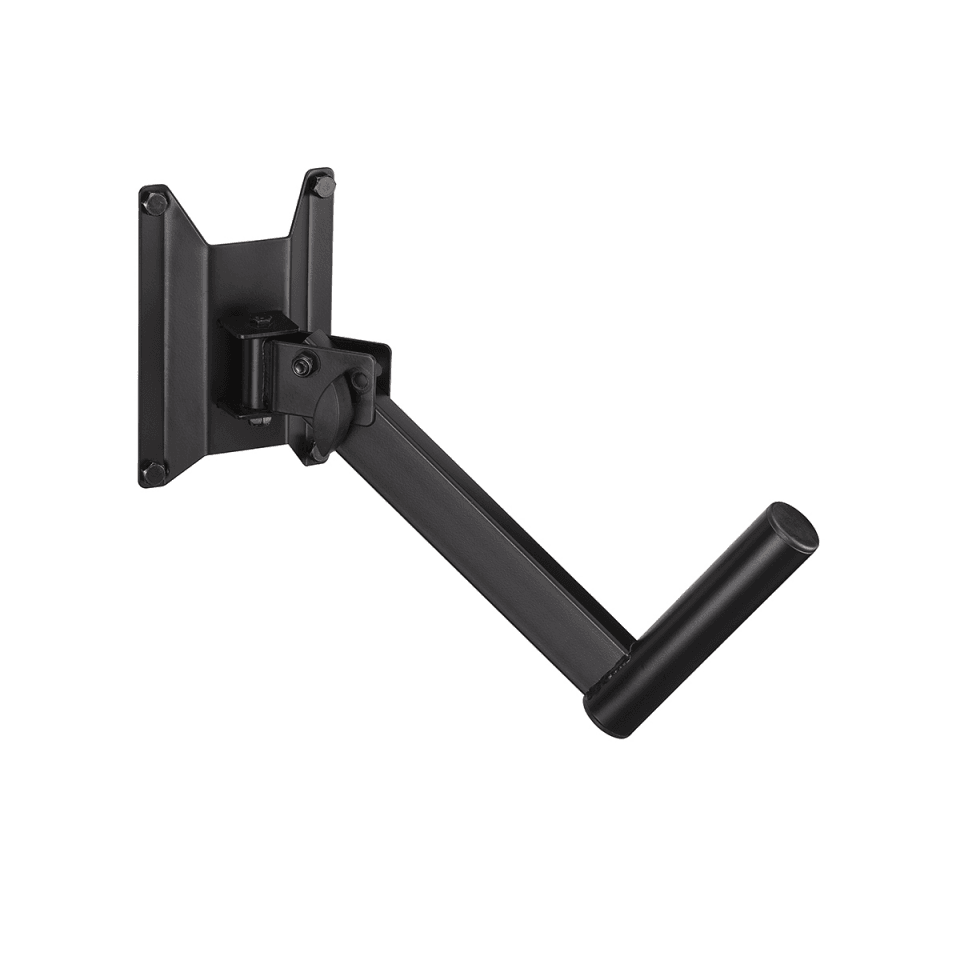

WSS-08 Wall mount speaker stand with inclination adjustment pin

Download product sheet

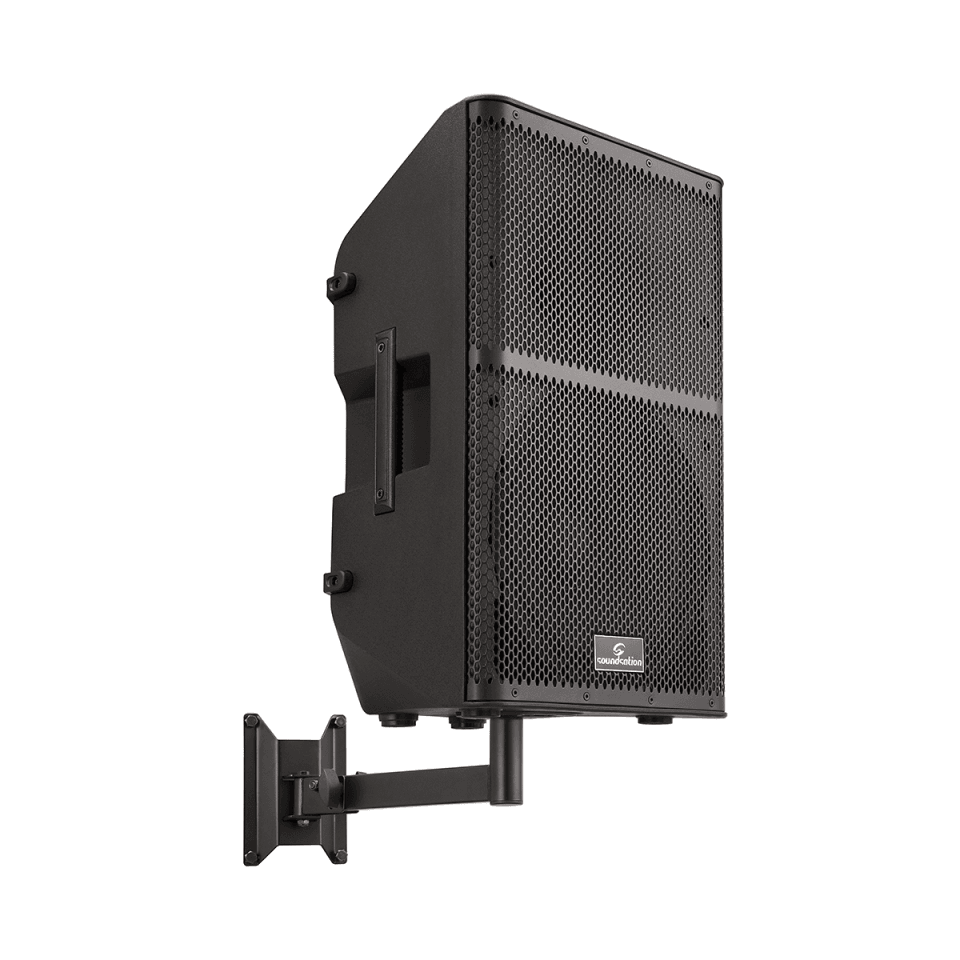

WSS-08 is an essential tool to install speakers in several situations: bars, restourants, school, conference room, etc. Sturdy and stable, it's built in metal and it comes with 4 wall fixing points in order to guarantee best stability. Speaker can be directed through the horizontal juction, while inclination can be adjusted in 3 different positions.
WSS-08 is an essential tool to install speakers in several situations: bars, restourants, school, conference room, etc. Sturdy and stable, it's built in metal and it comes with 4 wall fixing points in order to guarantee best stability. Speaker can be directed through the horizontal juction, while inclination can be adjusted in 3 different positions.

Buy online

Search Google Shopping

Product downloads

Product details

Key features

  • Fully built in metal material
  • 35mm pole mount
  • 4 wall fixing point with included screws
  • 180° horizontal adjustment for optimal direction
  • Inclination can be adjusted in 3 different position with safety pin (0°, 19°, 39°)

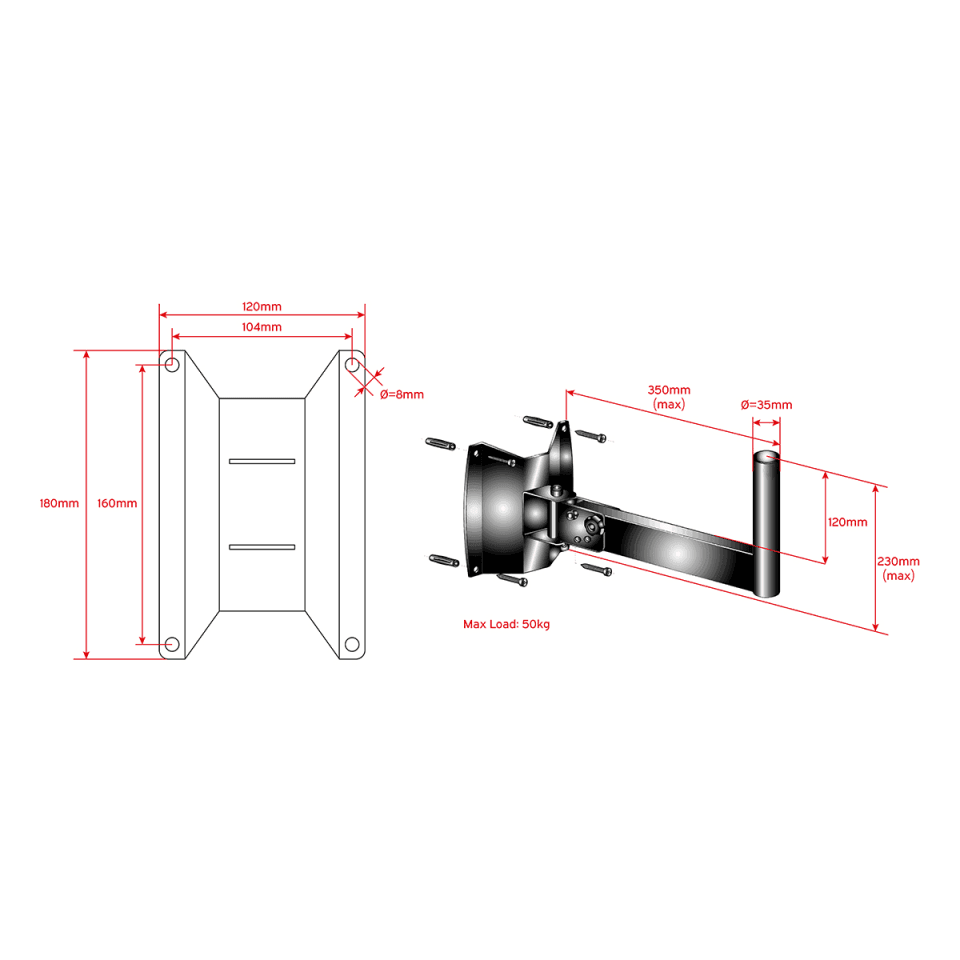

Specifications

  • Load capacity
    50 Kg
  • Horizontal directivity
    180°
  • Inclination
    from 0° to -29° in 3 positions
  • Horizontal distance of fixing holes
    104 mm
  • Vertical distance of fixing holes
    160 mm
  • Plate dimension (LxH)
    120 x 180mm
  • Total lenght
    300 mm
  • Pole mount dimensions
    (ØxH)
  • More Specifications Less Specifications
