LIVEMAKER 1521 MIX 1500W 2.1 Portable PA System with 8-Ch Mixer, Effect, and Bluetooth

Download product sheet
The LIVEMAKER 1521 MIX, 1500W 2.1 PA system, is designed as a compact system for live and educational purposes. It integrates an 8-channel mixer with Digital Effects and Bluetooth, three Class-D amplifiers with switching power supply for 1500W total peak power, a generous 15” subwoofer and two satellites with a 8” woofer and 1.4” HF driver. It represen... Read more »
The LIVEMAKER 1521 MIX, 1500W 2.1 PA system, is designed as a compact system for live and educational purposes. It integrates an 8-channel mixer with Digital Effects and Bluetooth, three Class-D amplifiers with switching power supply for 1500W total peak power, a generous 15” subwoofer and two satellites with a 8” woofer and 1.4” HF driver. It represents the perfect answer to those who need a professional sound system, but have problems of space, move with not very big cars or vans, and have a lot of audio sources to be connected. Not only, but they also need a professional reverb and, if necessary, want to connect a mobile phone, a tablet or a computer to play their play-lists. Both the subwoofer and the two tops are equipped with 36mm hole for pole or tripod. The reinforced MDF cabinets are robust, lightweight and finished with anti-scratch paint, to make them resistant to the rigors of the stage. Collapse text

Buy online

Search Google Shopping

Product downloads

Product details

Key features

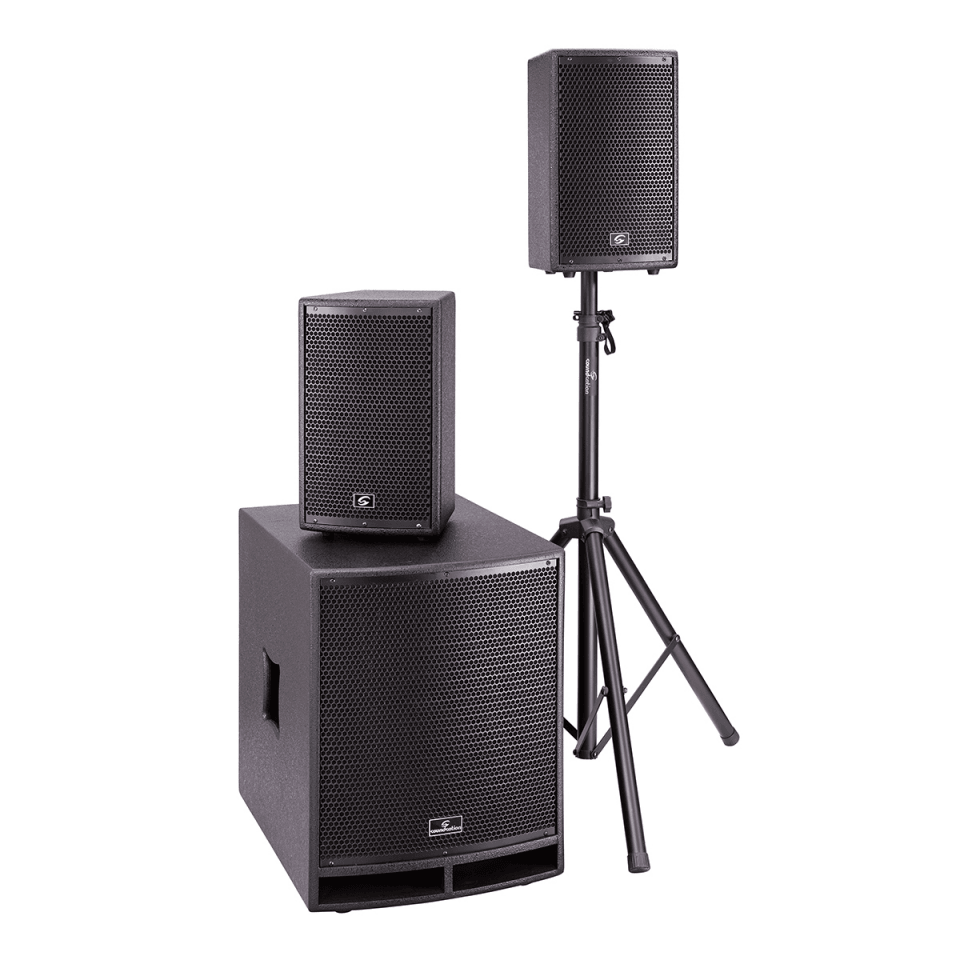

  • 2.1 Compact PA System with 2 passive satellites and 1 active subwoofer
  • 2 passive Tops with reinforced MDF cabinet, featuring 8” and 1.44” Titanium dome driver

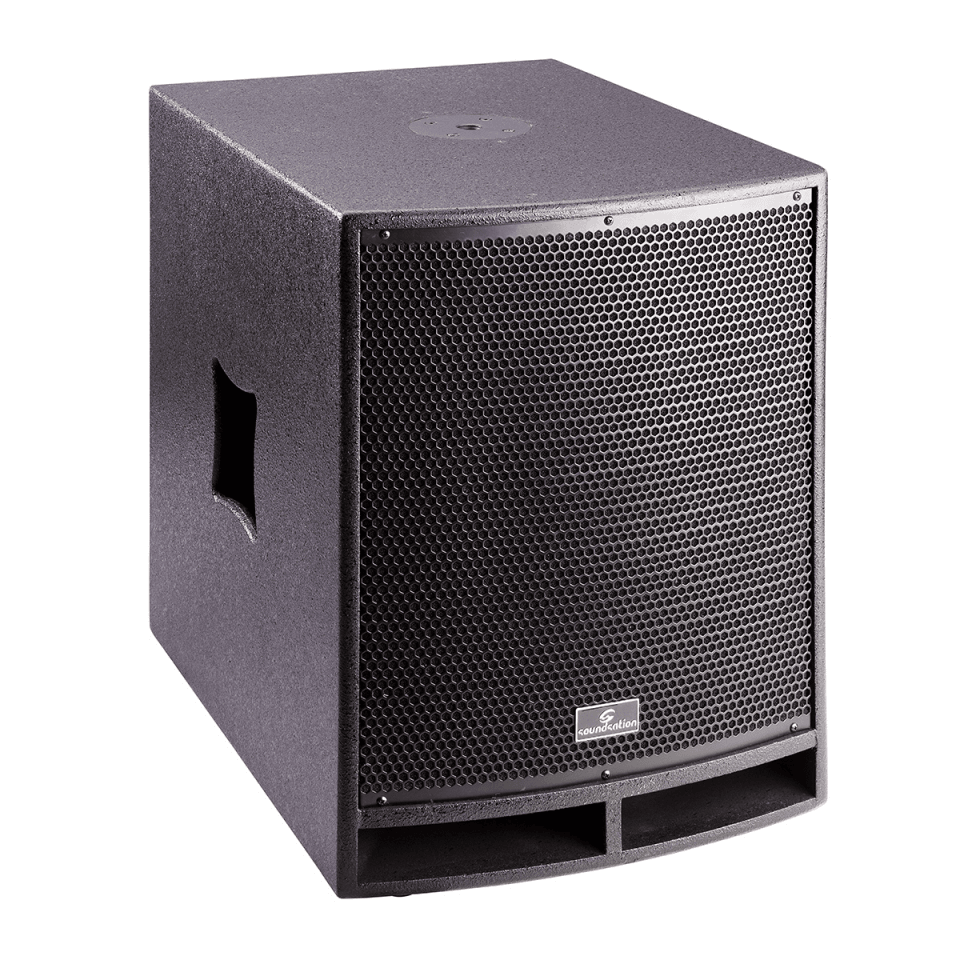

  • Active bass-reflex subwoofer with reinforced MDF enclosure, featuring a 15” woofer for up to 128dB sound pressure

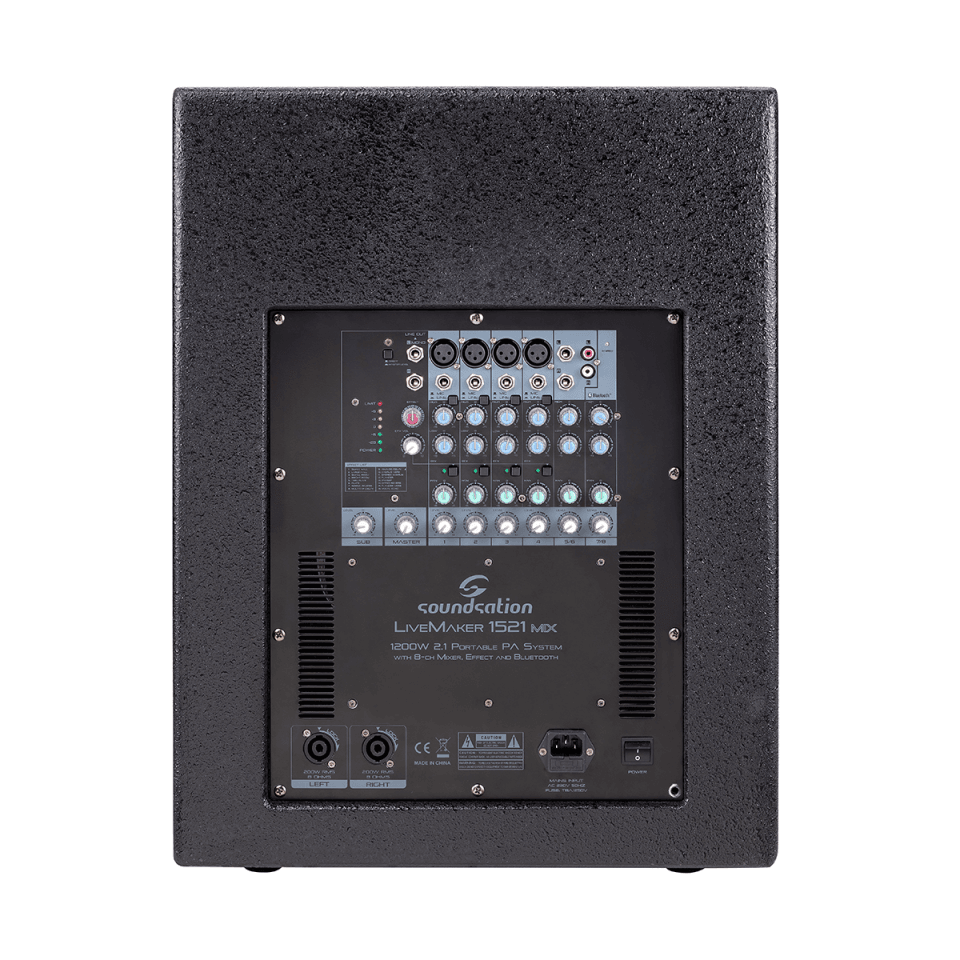

  • 8 Channel mixer with 4 MIC Inputs, 1 Stereo Line Input, 1 Stereo Bluetooth Input
  • 2-Band EQ, 16 Digital Effects (Mic channels only)
  • 1500W Peak power class-D amplifier with high-efficiency, low-heat dissipation switching power supply
  • Balanced MIC/Line Inputs and Balanced Outputs

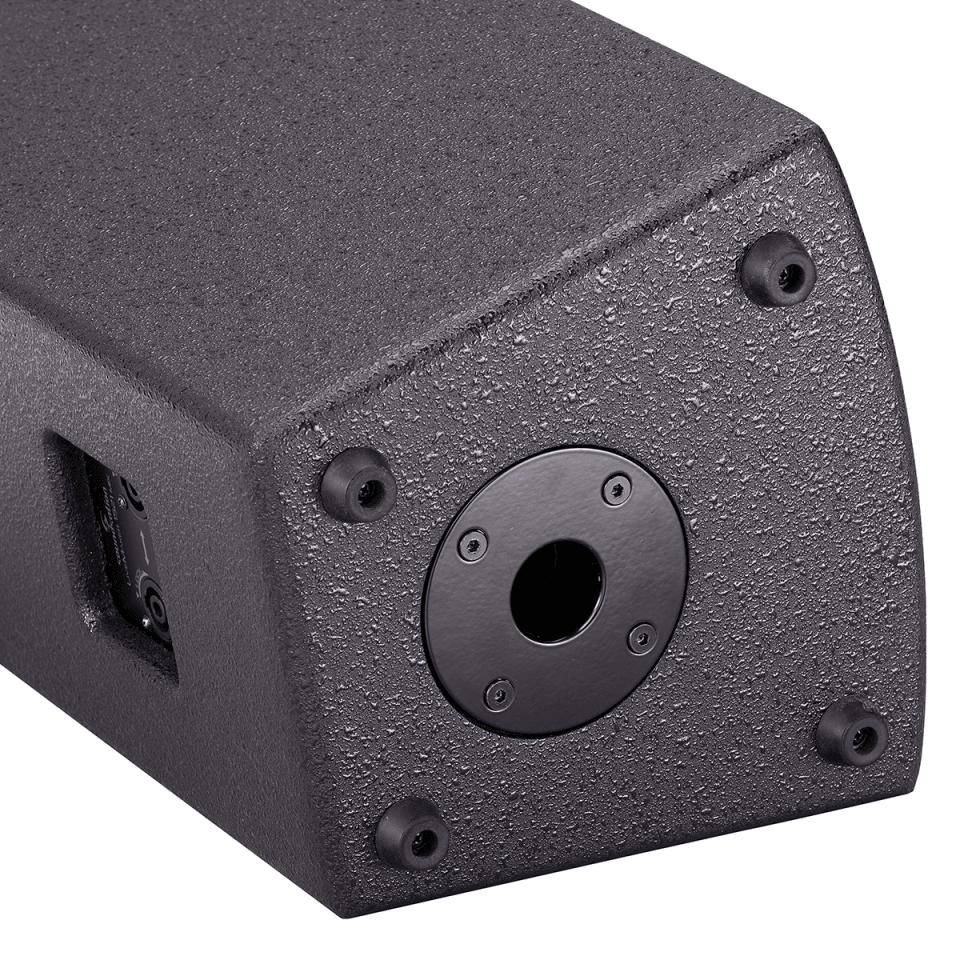

  • Standard D36mm pole mount adapter over the subwoofer top and under the two satellites
  • 2 handles on subwoofer (1 on each side)

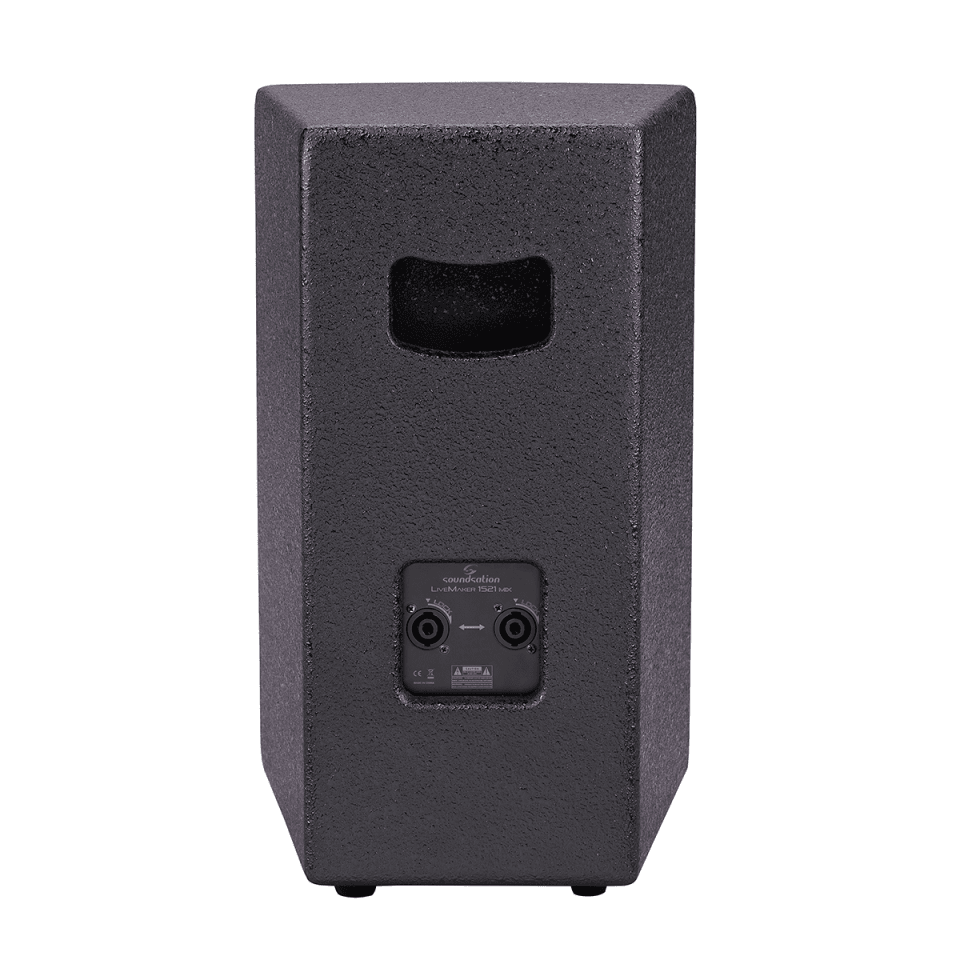

  • 1 Rear handle on each top
  • More Key features Less Key features

Specifications

  • System Max SPL
    129 dB
  • System Frequency Response
    40 Hz-20 kHz
  • Satellite Power RMS / Peak
    300W / 600W (each)
  • Satellite Frequency Response
    80 Hz-20 kHz
  • Satellite Sensitivity (1W@1m)
    97 dB
  • Satellite Max. SPL (@1m)
    122 dB
  • Satellite nominal Impedance
    8 ohms
  • Satellites Input Connectors
    2 x Speakon
  • Satellite LF
    1 x 8” with 2” voice coil
  • Satellite HF
    1 x 1.4" voice coil, titanium dome
  • Satellite Crossover Frequency
    3 kHz, 12 dB/octave
  • Speaker Pole Adapter
    Ø36mm
  • Satellite Size (WxHxD)
    614x510x334 mm (2pcs carton); 270x450x245 mm (one speaker)
  • Satellite Weight
    Net weight 9.2kg; Gross weight 20kgs (2pcs carton)
  • Inputs
    MIC XLR, 6.3mm jack, RCA
  • EQ Control
    Low
  • Bluetooth connection distance
    >6m
  • Subwoofer amplifier
    1 x 500W RMS @ 4ohms
  • Satellites amplifier
    2x 250W RMS @ 8ohms
  • Sub LF driver
    15” with 3” voice coil.
  • Sub Frequency response
    40 Hz-150 Hz
  • Sub Sensitivity (1m/1W)
    98 dB
  • Sub Max. SPL (@1m)
    128 dB
  • Mains
    AC 230V 50Hz (Fuse
  • Subwoofer Size (WxHxD)
    810x725x580 mm (Packing); 465x620x650 mm (sub)
  • Subwoofer Net Weight
    net weight 31.4kg; packing 35kg
  • Housing material
    MDF + Anti-scratch Printing (Black finish)
  • Handles
    2 on subwoofer (1 on each side); 1 on rear side of each top
  • Pole Mount Adapter
    Standard ;20
  • More Specifications Less Specifications
