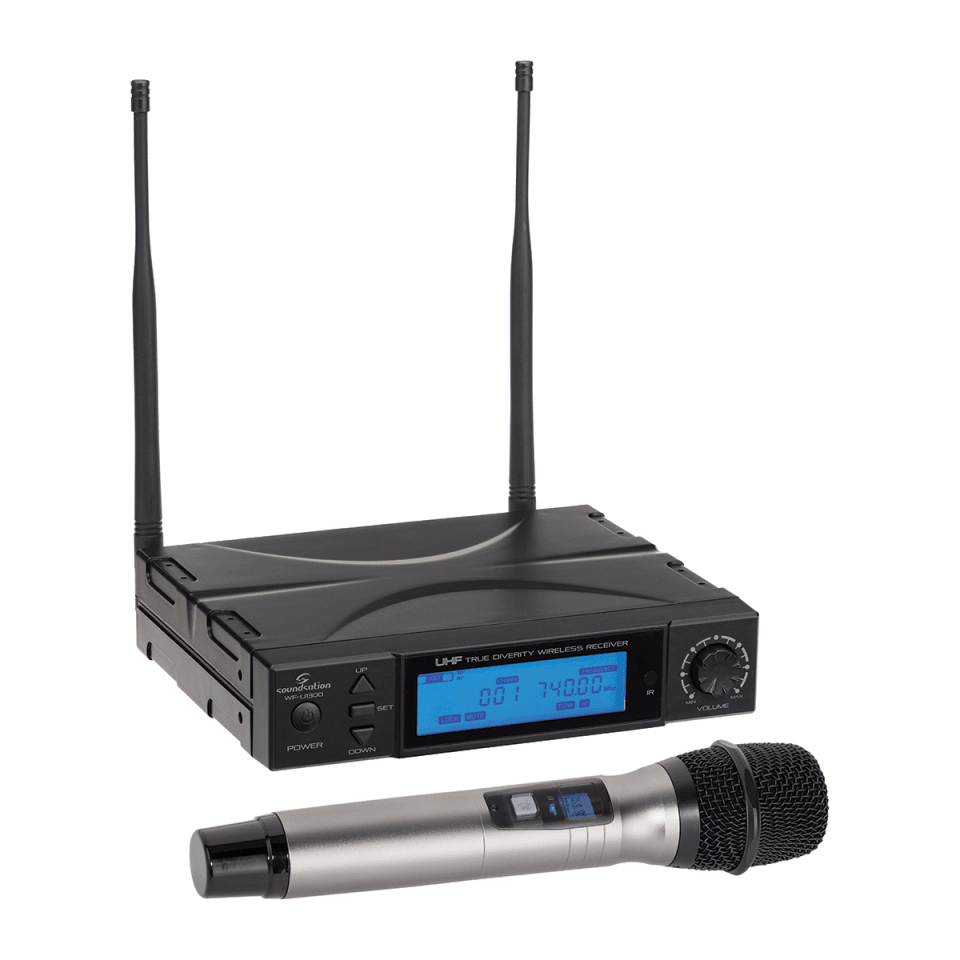

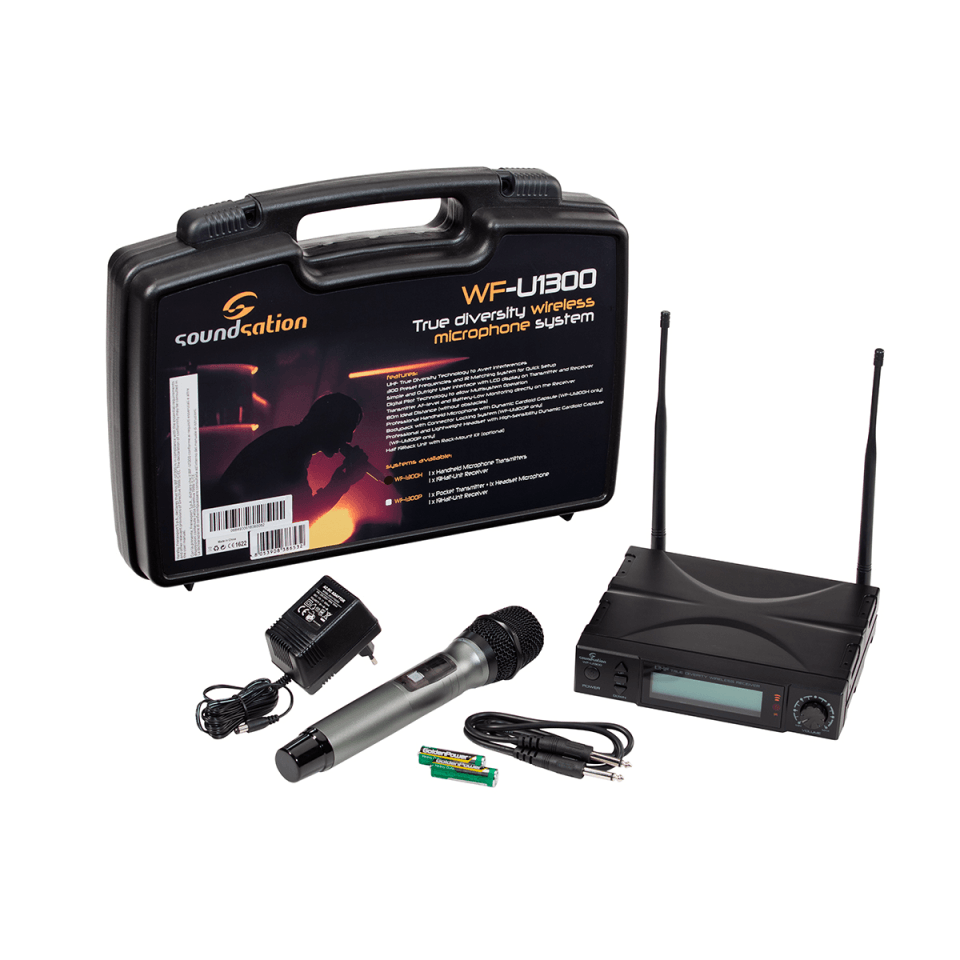

WF-U1300H True Diversity 300 Channels Wireless Microphone System with Handheld Microphone

Download product sheet
WF-U1300 is a UHF True Diversity professional wireless microphone with 300 channels and a simple and intuitive user interface. “True Diveristy” means that the receiving system is equipped with two antennas, two receive circuits and a device capable of continuously choose the stronger and interference-free signal. This system is built with leading techn... Read more »
WF-U1300 is a UHF True Diversity professional wireless microphone with 300 channels and a simple and intuitive user interface. “True Diveristy” means that the receiving system is equipped with two antennas, two receive circuits and a device capable of continuously choose the stronger and interference-free signal. This system is built with leading technology that allows the integration of many of the major functions - such as amplification section, digital signal processing, PLL (Phase-Locked Loop) frequency synthesis, and more - into a single CHIP. This allows us to offer highly professional performance yet cost-effective products. The WF-U1300 is also equipped with the automatic frequency search system and IR sync. system for channel synchronization between receiver and transmitter in a quick way. Furthermore, Digital Pilot Technology not only allows to monitor reception level and batteries charge, but even to operate with multiple systems without problems. Finally, there are two optional kit for rack mounting of 1 or 2 receivers, respectively, on 1 or 2 standard 19” rack units. Collapse text

Product downloads

Product details

Key features

  • UHF True Diversity Technology to Avert Interferences
  • 300 Preset Frequencies and IR Matching System for Quick Setup
  • 823-832MHz UHF Band
  • Simple and Outright User Interface with LCD display on Transmitter and Receiver
  • Digital Pilot Technology to allow Multi-system Operation
  • Transmitter AF-level and Battery-Low Monitoring directly on the Receiver
  • 80m Ideal Distance (without obstacles)
  • Professional Handheld Microphone with Dynamic Cardioid Capsule
  • Rack-Mount Kit for 1 or 2 receiver units to 1x or 2x 19” rack unit (optional)
  • More Key features Less Key features

Specifications

  • SYSTEM
  • Carrier Frequency
    UHF823-832MHz
  • Frequency Stabilization
    < ±30ppm
  • Dynamic Range
    >90dB
  • Total Harmonic Distortion
    <0.5%
  • Frequency Response
    40Hz-15KHz ±3dB
  • Audio Output Level

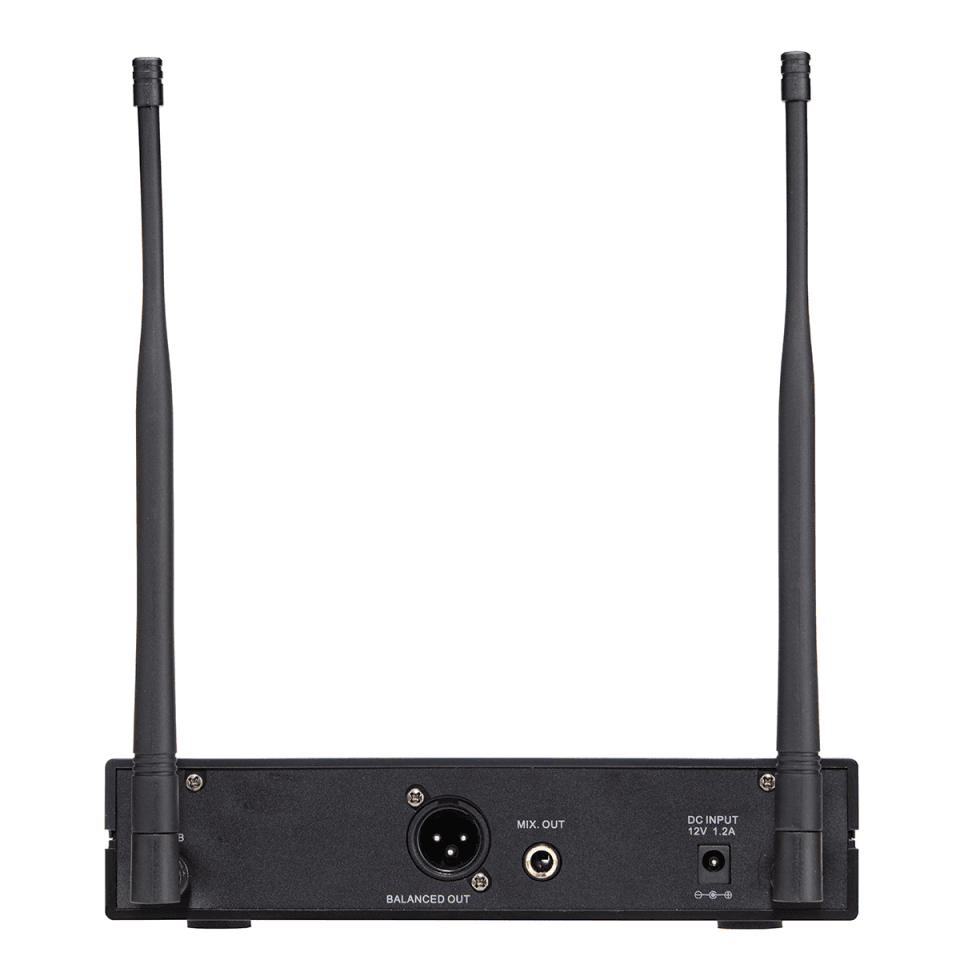

    Balanced 400mV; Unbalanced 400mV
  • Packing Dimensions (WxHxD)
    435 x 104 x 321 mm
  • Packing Gross Weight
    2.5 kg
  • RECEIVER
  • Power Supply
    DC 12V / 500mA
  • Consume Power
    5W
  • Signal/Noise Ratio
    >90dB
  • Receiving Sensitivity
    5dBuV
  • De-Emphasis
    75uS
  • Dimensions (WxHxD)
    210 x 43 x 187 mm (antennas not included)
  • Antenna
    255 mm (not bent)
  • Net Weight
    0.53 kg
  • HANDHELD TRANSMITTERS
  • Transmitter Power
    10mW (Max)
  • Modulation Type
    FM
  • Max Deviation
    ±25KHz
  • Spurious Emission
    >40dB
  • Battery Voltage
    3V (2x1.5V AA Batteries)
  • Continuous Using
    5 hours
  • Dimensions (W/DxH)
    Ø35 (min) - Ø53 (max) x 260 mm
  • Net Weight
    0.335 kg (batteries included)
