BLUEPORT FX 2x100W Portable PA System with active mixer and two passive 2-Way Speakers

Download product sheet
BLUEPORT FX is the result of years of experience gathered by SOUNDSATION in Portable Sound systems, a segment where quality, versatility and value for money are absolutelyessential. This active amplified portable PA system includes two passive speakers with 10 “woofers and integrated amplified mixer. In addition to the MP3 player with USB, SD card and ... Read more »
BLUEPORT FX is the result of years of experience gathered by SOUNDSATION in Portable Sound systems, a segment where quality, versatility and value for money are absolutelyessential. This active amplified portable PA system includes two passive speakers with 10 “woofers and integrated amplified mixer. In addition to the MP3 player with USB, SD card and Bluetooth ™, the system integrates a 24Bit DSP FX with 16 genuine effects to add to the MIC inputs choosing the level for each channel. The integratedmixer is equipped with a Class-D 2x100W (RMS) amplifier. The enclosures (ABS) are strong and lightweight and have a pleasant look. Collapse text

Buy online

Search Google Shopping

Product downloads

Product details

Key features

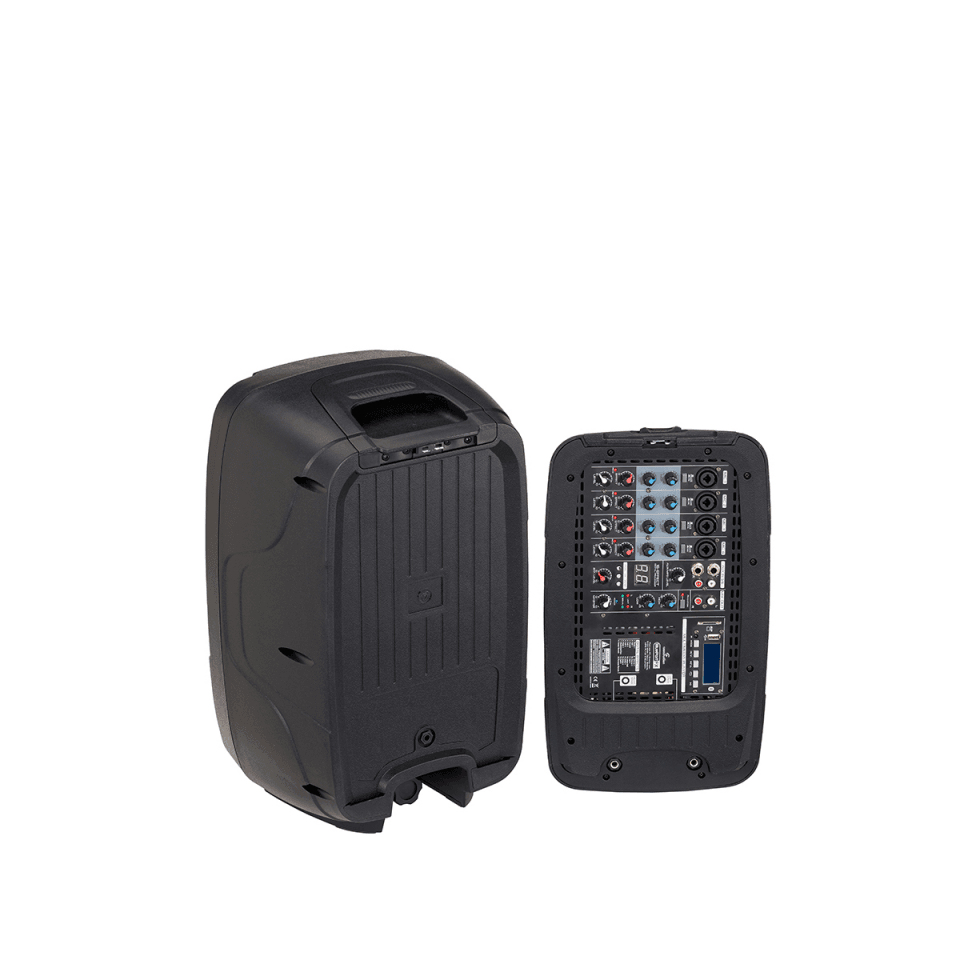

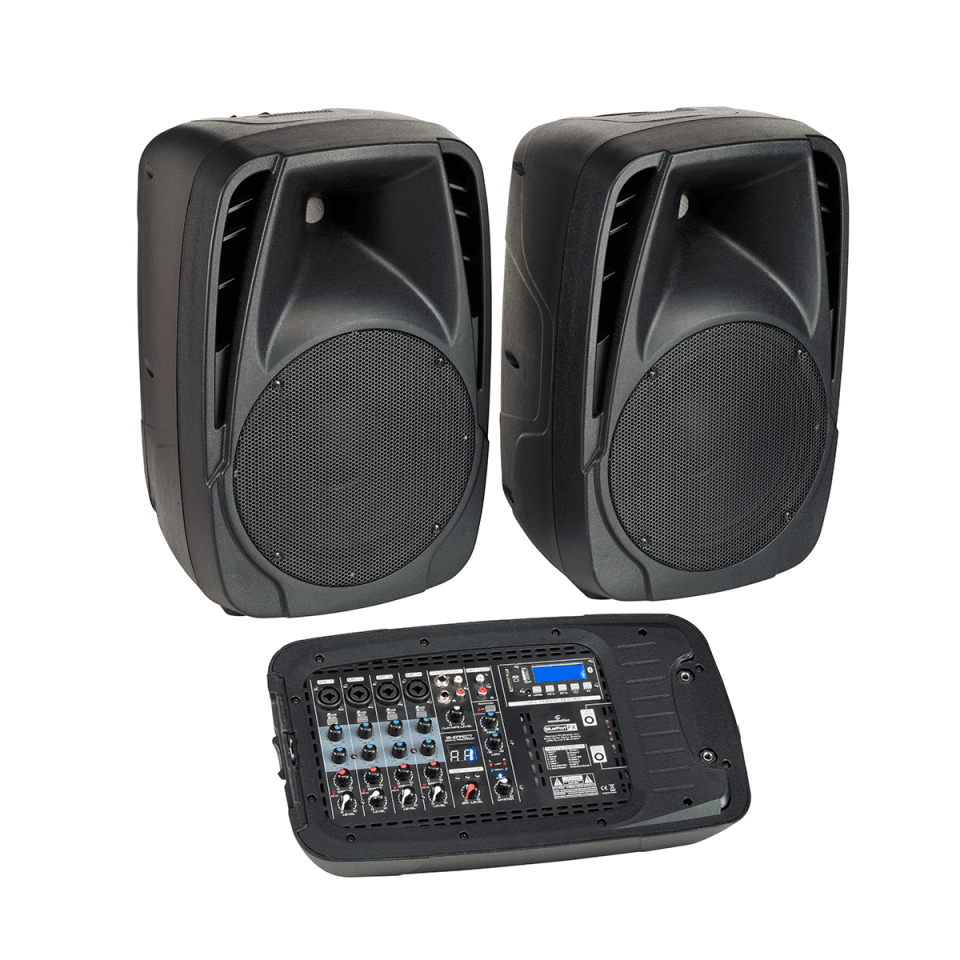

  • Two passive speakers with integrated amplified mixer
  • Class-D 2x100W (RMS) Amplifier

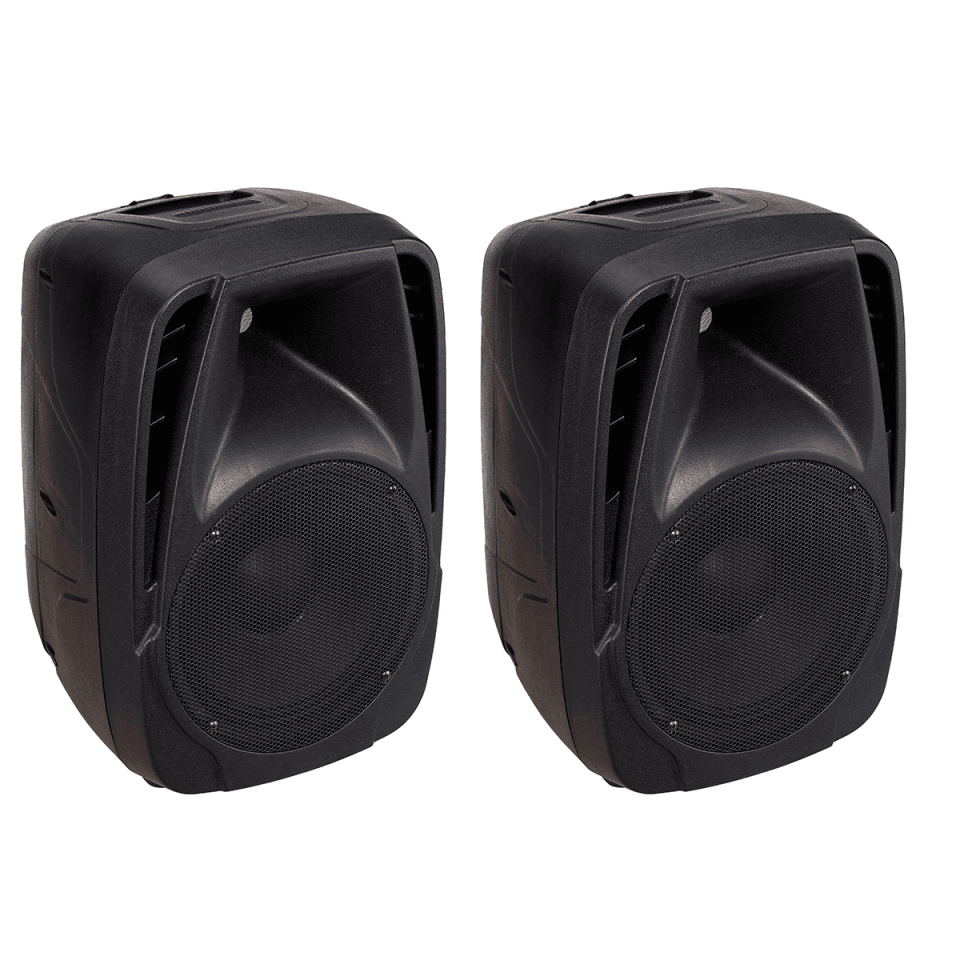

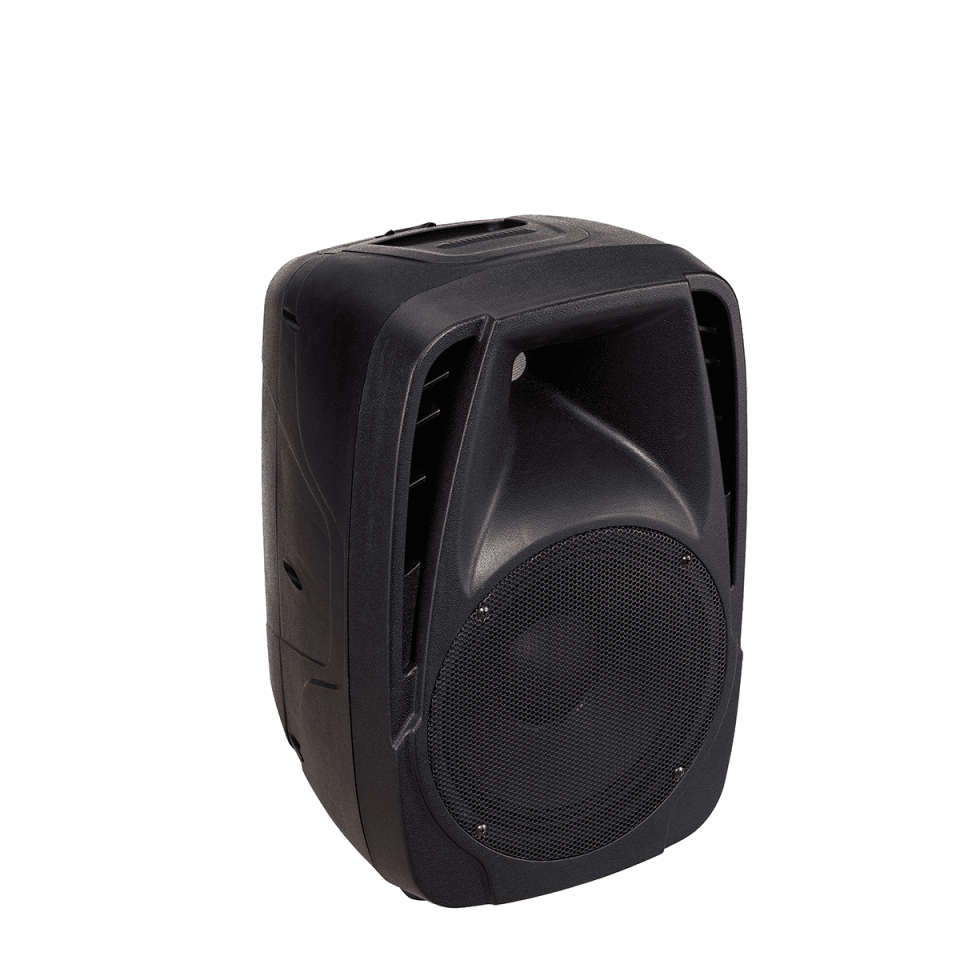

  • Speakers with 10“ Woofers and 1“ compression driver
  • Dual Band Equalizer (Low/High frequencies)
  • MP3 player with USB, SD card and Bluetooth™

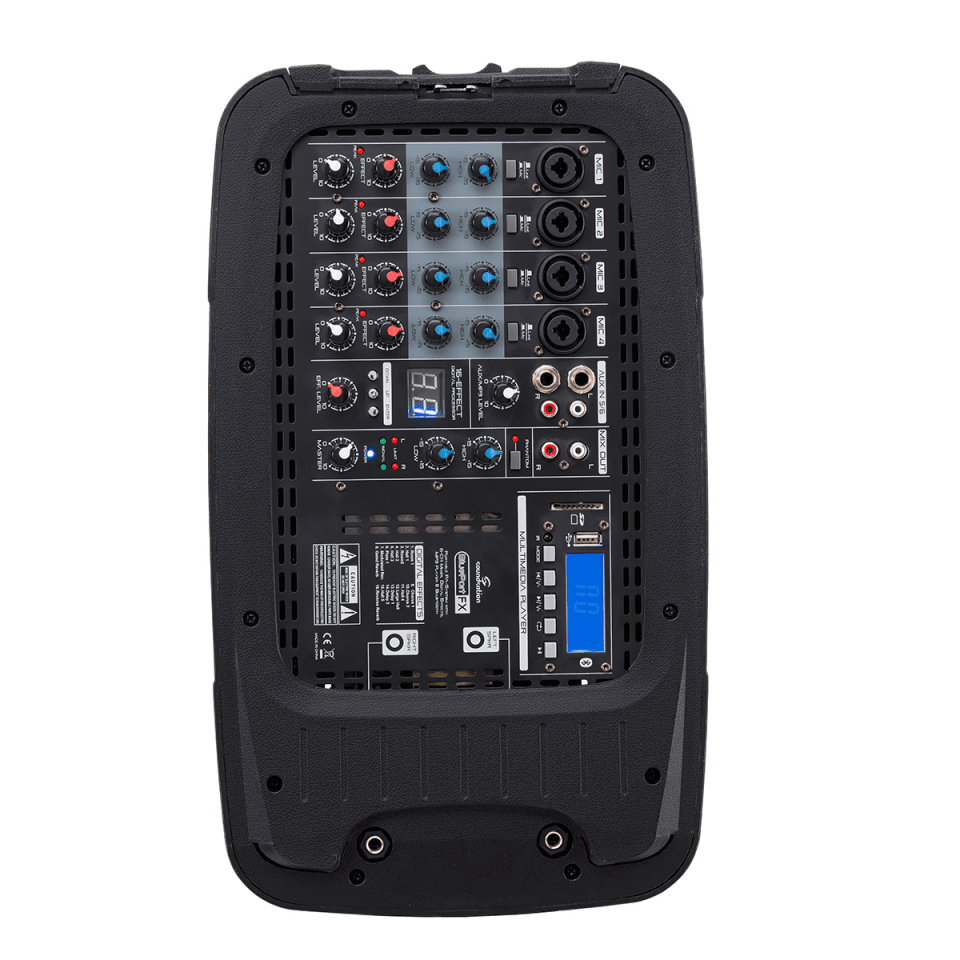

  • 4 Microphones/Line Inputs
  • 1 Stereo RCA/JACK 1/4" Line Input
  • 1 Stereo RCA Line Output
  • 24Bit DSP FX with 16 genuine effects
  • Infrared receiver for remote control

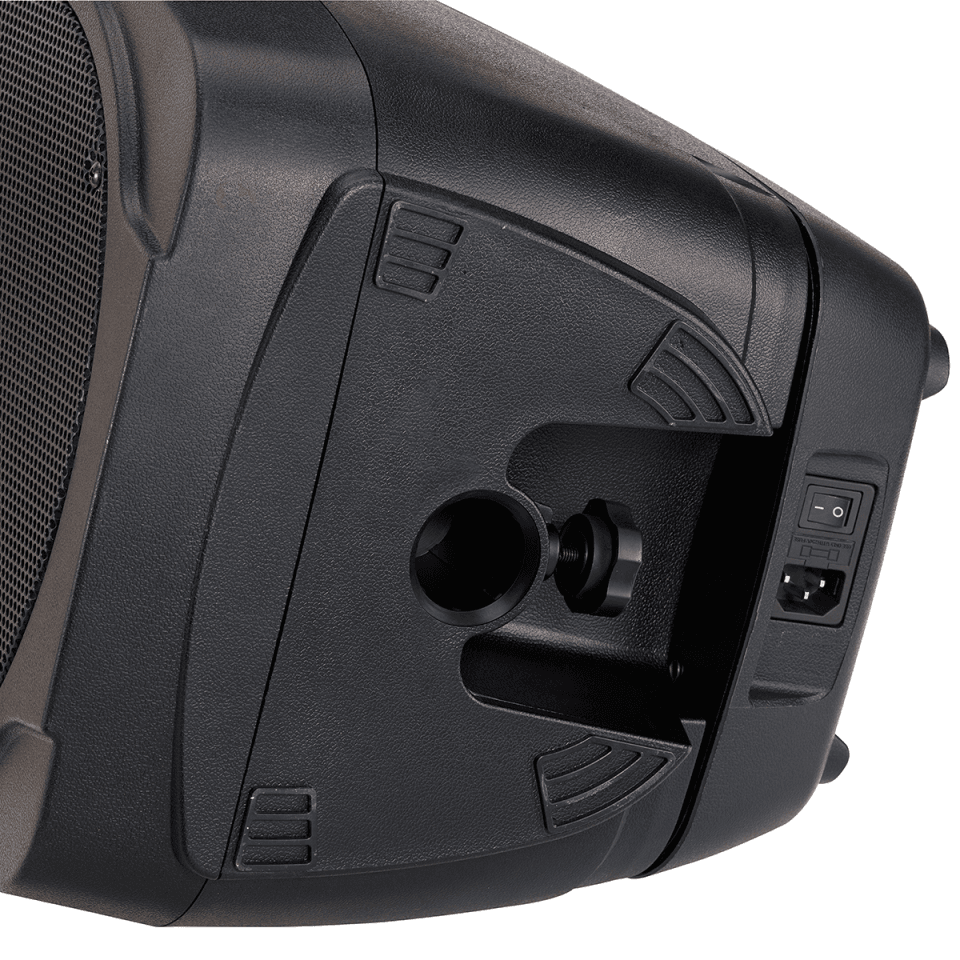

  • 35 mm hole for pole mounting
  • Sturdy, compact and lightweight cabinets (ABS)
  • More Key features Less Key features

Specifications

  • Frequency Response - 65 Hz - 20KHz [- 10dB] ; 65Hz-19KHz [- 3dB]
  • System Max SPL / Sensitivity - 118dB / 95dB
  • HF Type - Compression Driver ; Throat diameter / Voice coil diameter - 1” / 1” ; Driver throat diameter - 80mm ; Directivity (HxV) / Horn Type - 90°x40°-60° / Asymmetric ; Magnet Material / Weight - Ferrite Magnet Structure / 225g ; RMS Power - 25W ; Sensitivity(1W/1m) - 106dB ; Crossover Frequency / Filter Slope - 3KHz / 6dB/Octave ; Impedance - 8 Ohm
  • LF Woofer Diameter - 10” ; Voice coil diameter - 10” ; Voice coil diameter - 1.5” ; Magnet Material / Weight - Ferrite Magnet Structure / 677.3g ; RMS Power - 100W ; Frequency Response - 63Hz - 3.5KHz ; Max SPL (1W/1m) - 94dB ; Impedance - 4 Ohm
  • Amplifier Class - D ; Power RMS / Peak - 2 x 100W / 2 x 250W ; Output Connectors - 2x 1/4” Jack
  • Input Channels - 4 Mic/Line + 1 Stereo Line
  • Phantom Power - (CH1-4) +48V
  • EQ High (CH 1-4 and Master) - Cut-off freq
    1KHz / Gain
  • EQ Low (CH 1-4 and Master) - Cut-off freq
    500Hz / Gain
  • Digital Effects - 16 Presets with Level Control (CH1-4)
  • Digital Multimedia Player - USB, SD-CARD and Bluetooth
  • Power Requirement - 230Vac-50Hz ; Power Consumption - 350W ; Power Switch - YES ; Connector - VDE ; Fuse - T3.15A - 250V
  • Speaker Housing material - ABS
  • Grille material / thickness - Steel / 0.8 mm
  • Mixer Housing material - ABS
  • Handles -YES
  • Pole Mount - YES/35mm
  • Single Speaker Size (WxHxD) - 330 x 300 x 490mm
  • Packing Size (WxHxD) - 640 x 365 x 545mm
  • Net Weight (2 speakers + mixer + accessories) - 16kg
  • Gross Weight - 18Kg
  • More Specifications Less Specifications
