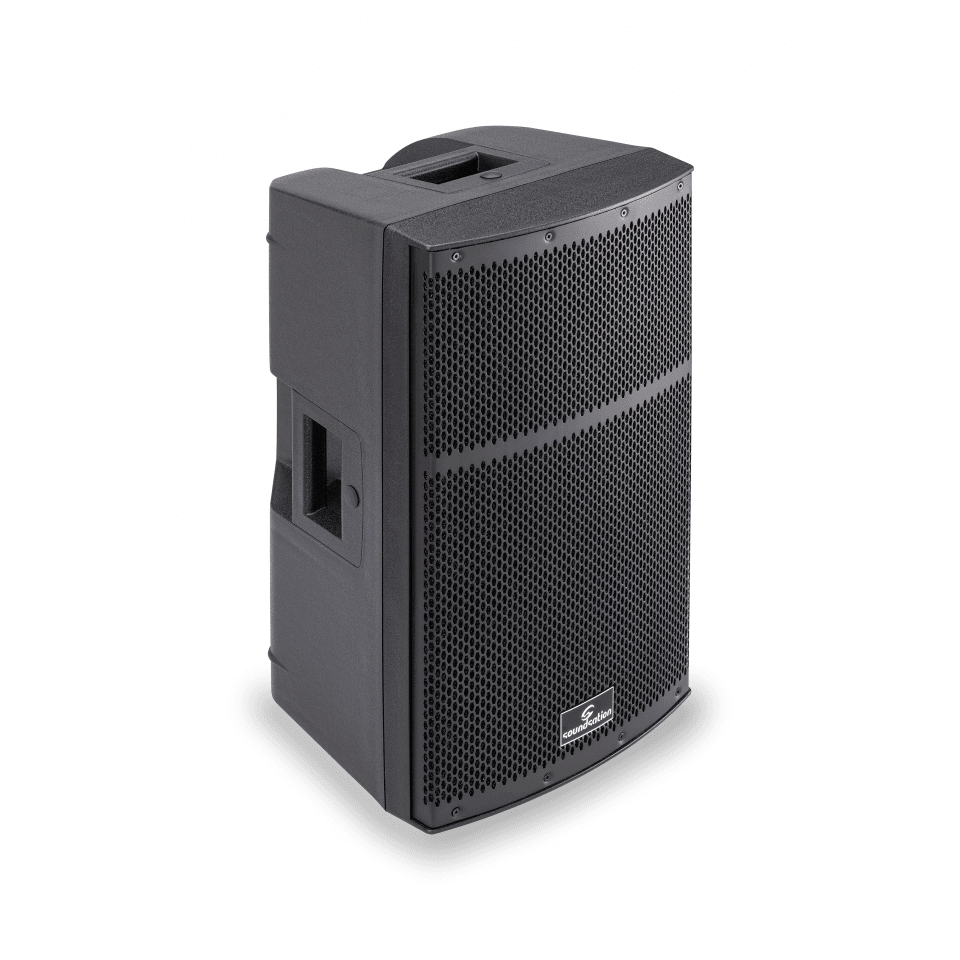

HYPER-PRO 12 PLUS 12” 2-Way Active Loudspeaker with DSP

Download product sheet

The new Hyper-Pro Plus speakers represent a new important stage in the evolution of the famous Hyper series by Soundsation. The power, audio quality and convenience of the previous models are now integrated with the functions which are essential for those who professionally use a speaker as a work tool.

700W continuous D-Class speakers, selected woofe... Read more »

The new Hyper-Pro Plus speakers represent a new important stage in the evolution of the famous Hyper series by Soundsation. The power, audio quality and convenience of the previous models are now integrated with the functions which are essential for those who professionally use a speaker as a work tool.

700W continuous D-Class speakers, selected woofers and compression drivers, DSP for Crossover control, EQ, 2-Band Limiter, phase alignment and delay optimization of woofers and compression drivers. All this technology can ensure high performance and maximum audio quality in any use conditions.

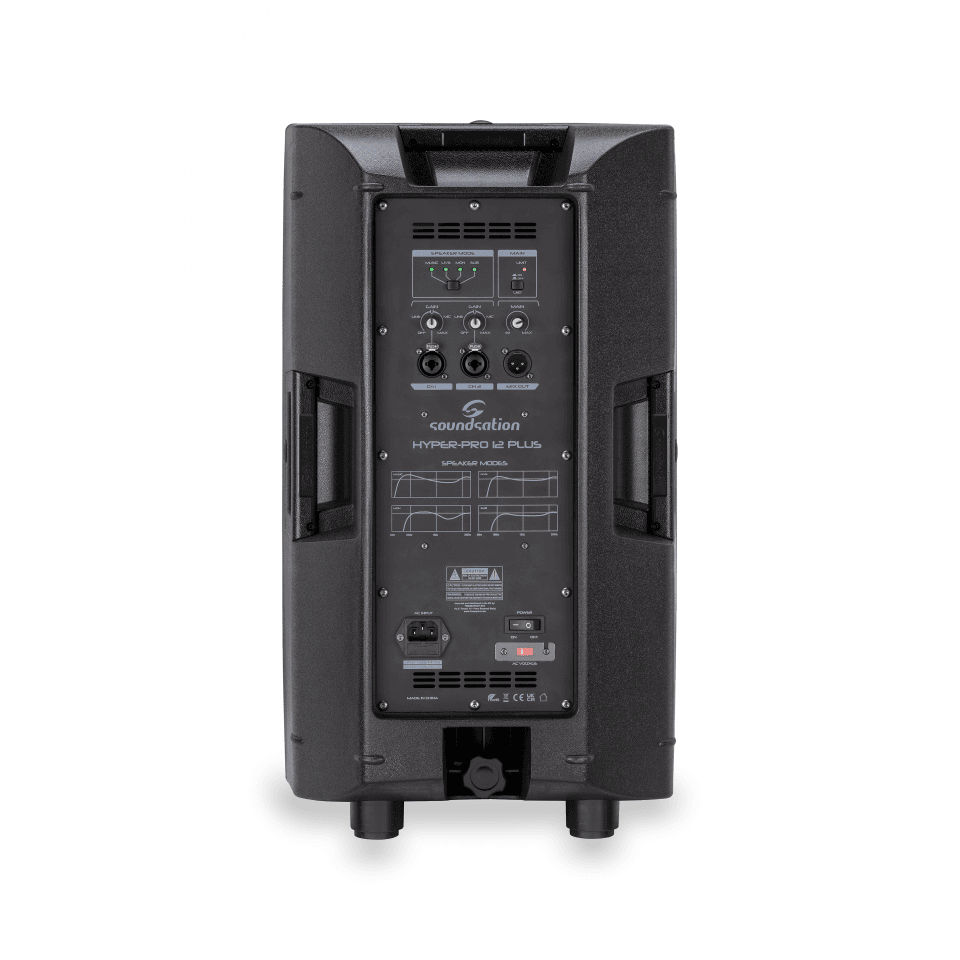

The control panel includes two XLR-Combo Mic/Line inputs, the Mix output and 4 Audio Programs (Music, Live, Monitor, Vocal) to quickly adapt the speaker to the main uses.

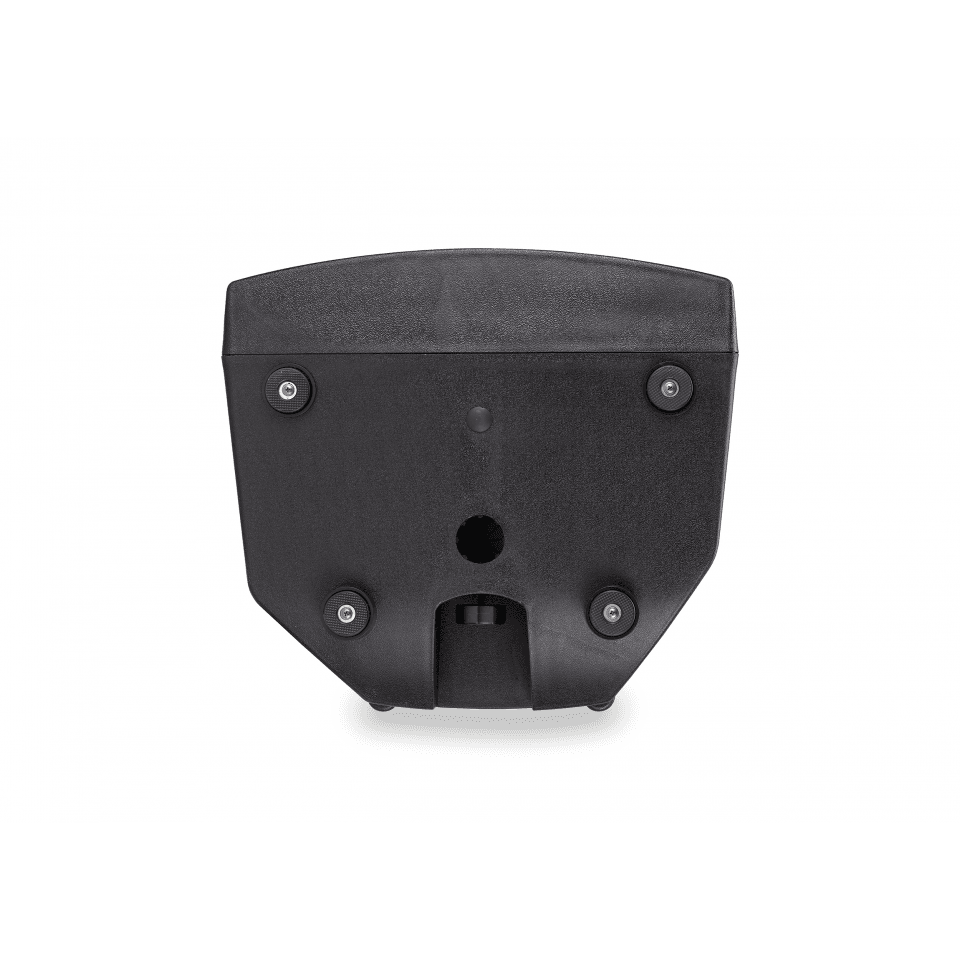

The stylish and sturdy cabinet is designed to be installed vertically on the floor or on a 35mm pole/tripod, and also suspended horizontally or vertically thanks to the 4 M8 fixing points.

Collapse text

Buy online

Search Google Shopping

Product downloads

Media

Hyper-Pro Plus series
2-Way Speaker
Class-D
DSP

Product details

Key features

  • 2-way Loudspeaker, Bass-Reflex Design
  • 700W Continuous / 1400W Peak Class-D amplifier
  • 90°H x 60°V Coverage
  • DSP for Crossover, EQ and 2-Band Limiter Control, Phase and Time Optimization
  • 4 EQ Presets (Music, Live, Monitor, Speech)
  • 2 Mic-Line Combo Inputs and Balanced Mix Output
  • On-off key for the Front LED
  • 35mm Adapter for Pole or Tripod Stand
  • 4 Fixing Points for M8 Eyebolts
  • More Key features Less Key features

Specifications

  • System Type
    2-Way Active 12" Loudspeaker, Bass-Reflex
  • Power Rating
    700W Continuous, 1400W Peak
  • Frequency Response
    45Hz-20kHz
  • Max SPL
    130dB SPL
  • LF Driver
    12” Custom Woofer
  • HF Driver
    1” Compression Driver
  • Coverage
    90°H x 60°V
  • Crossover Frequency
    2.5kHz
  • Input Connectors
    2x Balanced Combo XLR/1/4” Jack Connectors
  • Output Connectors
    1x Balanced XLR Mix Output
  • Indicators
    Power, Clip, Preset, Front Led
  • EQ
    4 Presets (Music, Live, Monitor, Vocal)
  • DSP
    Crossover, EQ, Dual Band Limiters, Phase and LF/HF Time Alignment
  • Controls
    2x Channel Gain, Master Volume, Front Led On/Off, Ground Lift, EQ Preset
  • AC Power
    100-120V~ or 220-240V~ 50/60Hz (User Selectable)
  • Power Consumption
    360W Typical
  • Cabinet
    Polypropylene
  • Handles
    2 on Sides, 1 on Top

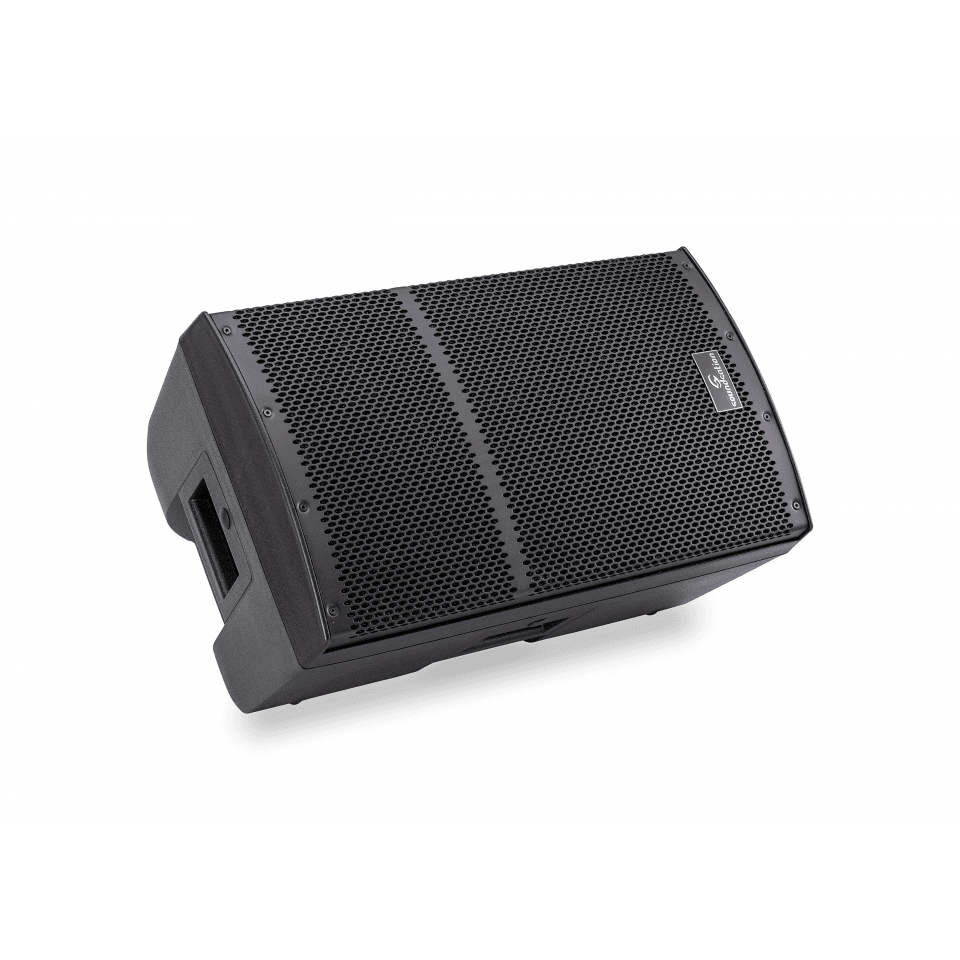

  • Monitor Angle
    45°
  • Finish
    Black
  • Grille
    Powder-Coated Steel with Acoustic Foam
  • Pole-Mount
    36mm Pole Socket
  • Flying Points
    4x M8:
  • Unit Size (WxDxH)
    357 x 356 x 610 Mm (14.1” x 14” x 27”)
  • Net Weight
    14,4 Kg - 31.7 Lbs.
  • Carton Size (WxDxH)
    440 x 440 x 685 Mm (17.3” x 17.3” x 27”)
  • Packed Weight
    16.8Kg - 37 Lbs.
